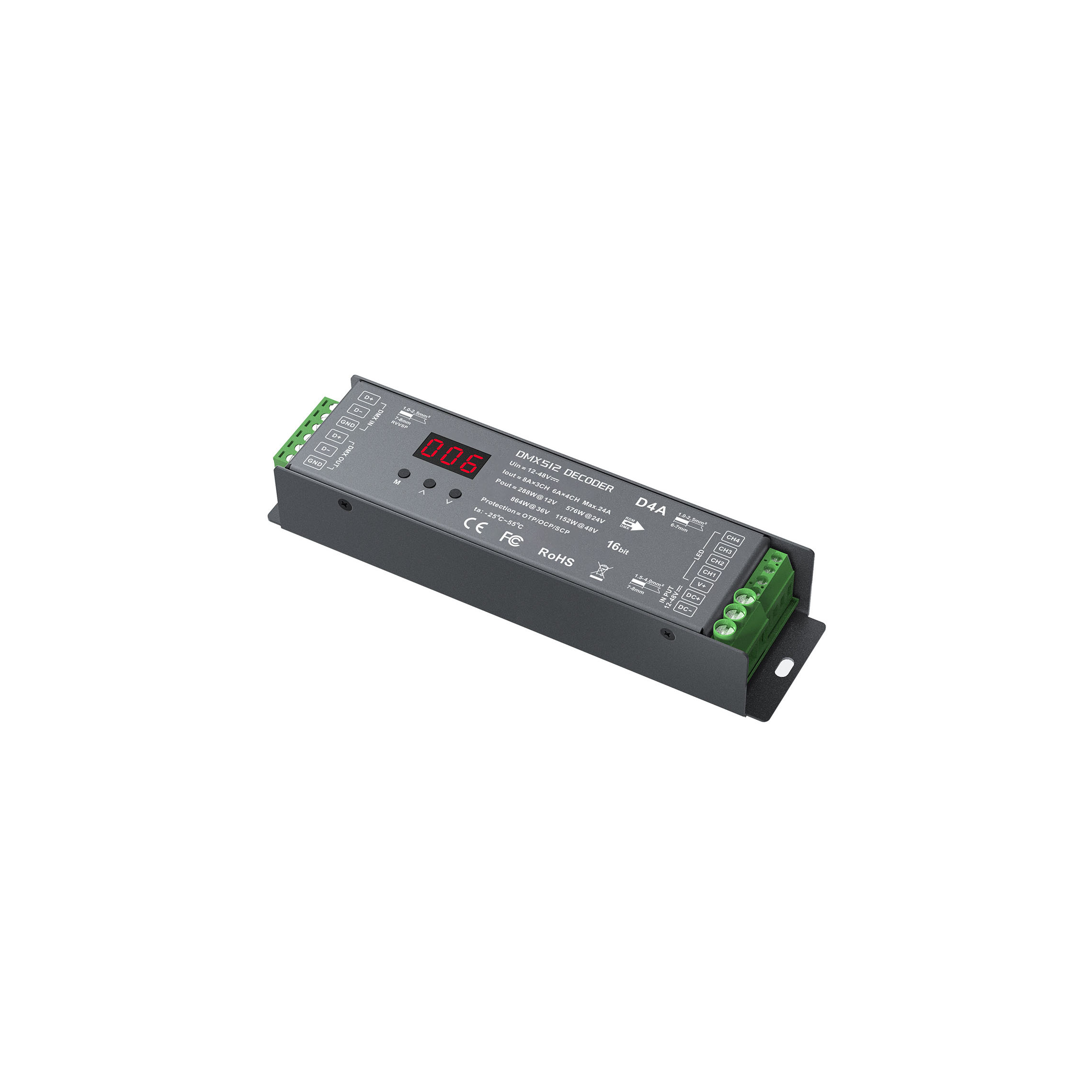

D4A with DMX wires strips 4 Channel DMX/RDM Decoder Full Spectrum 16bit Decoder Constant Voltage

Standard DMX/RDM interfaces; Set addresses via the digital display and buttons

Standard DMX/RDM interfaces; Set addresses via the digital display and buttons.

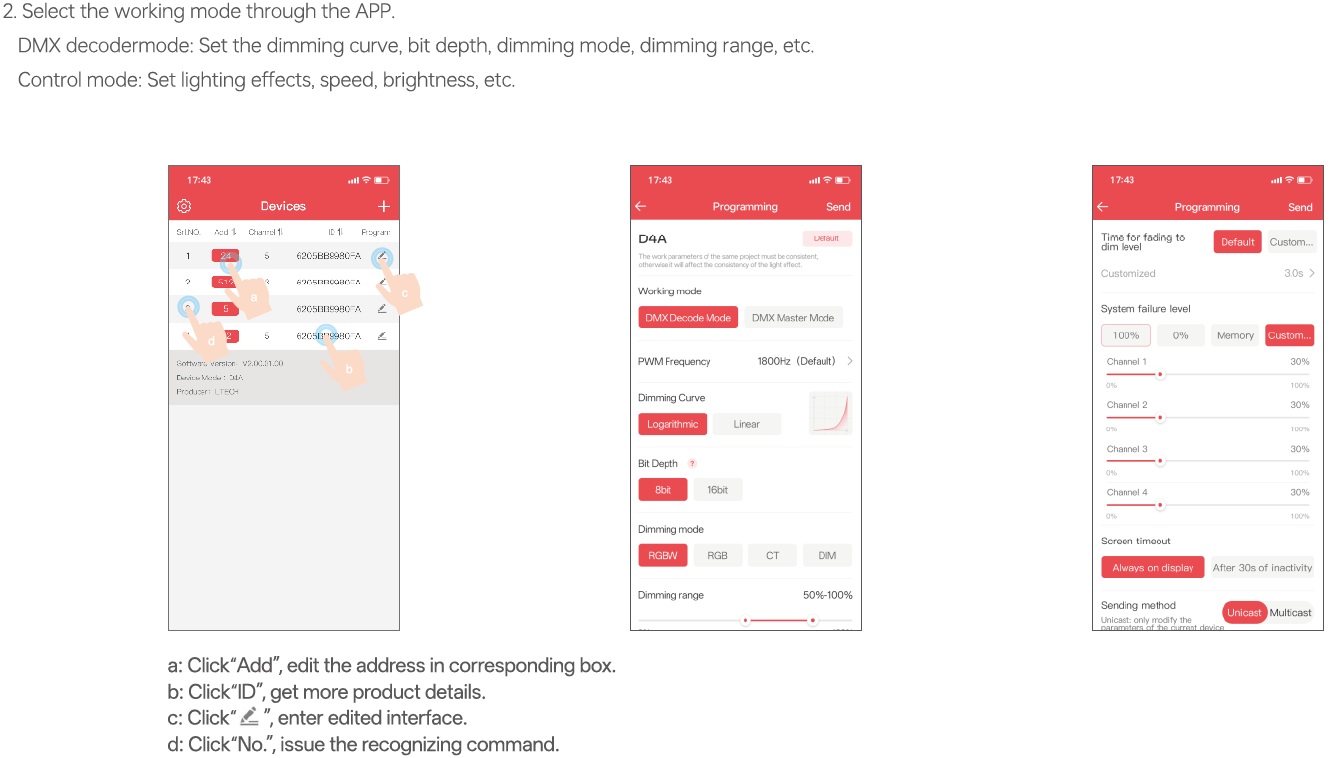

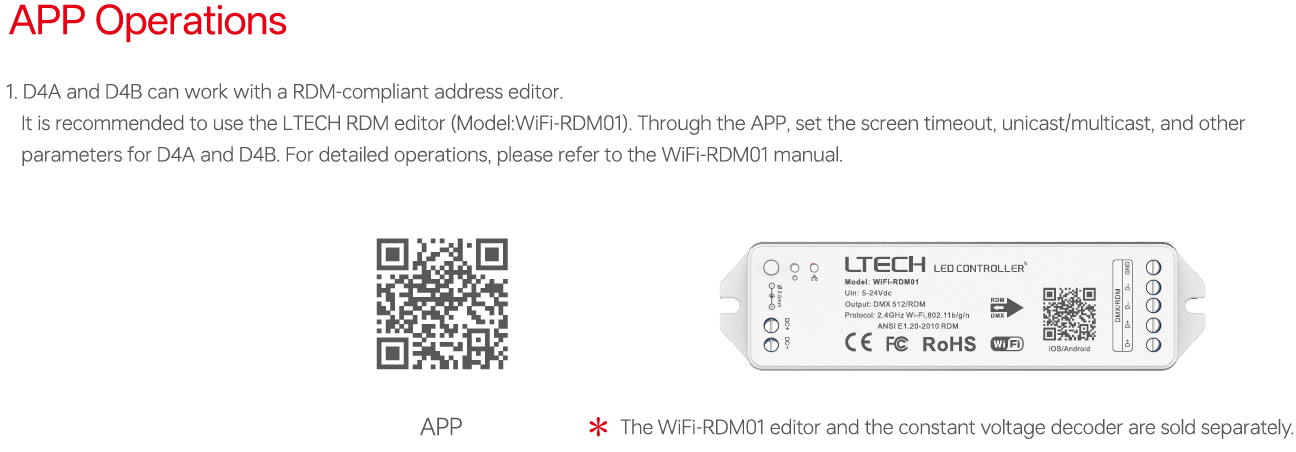

RDM protocol; Browse parameters and change OMX addresses via a RDM master or via the mobile APP.

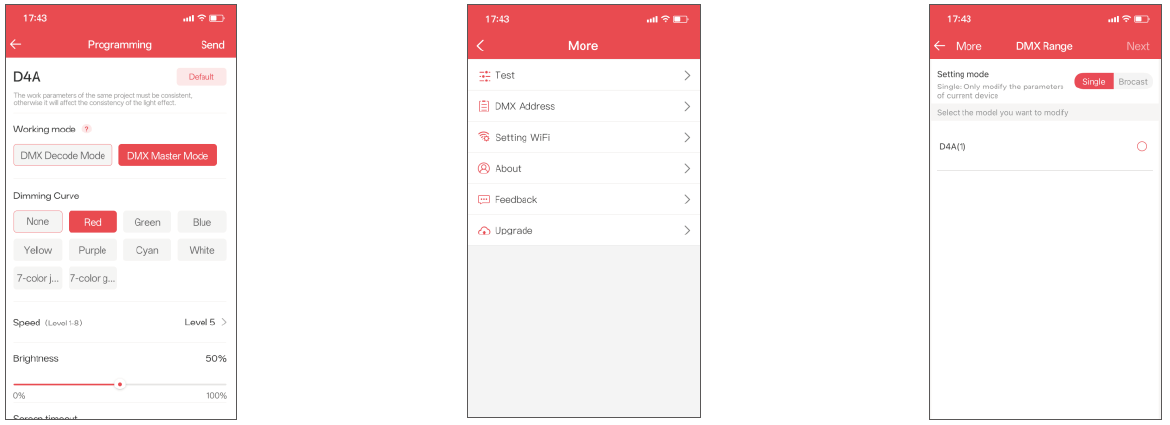

DMX decoding mode and DMX control mode are switchable, In the control mode, other decoders can be controlled by selecting preset lighting effects output.

PWM frequency options: 300/600/1200/1500/1800/2400/3600/7200/10800/ 14400/18000Hz.

16bit (65536 levels)/8bit (256 levels) gray scale optional.

Linear and logarithmic dimming curve optional.

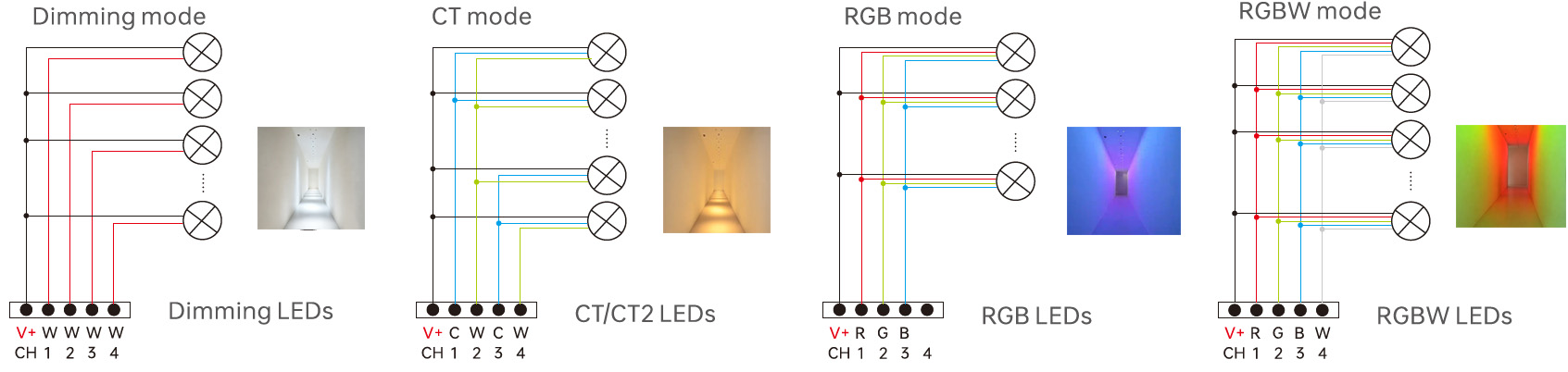

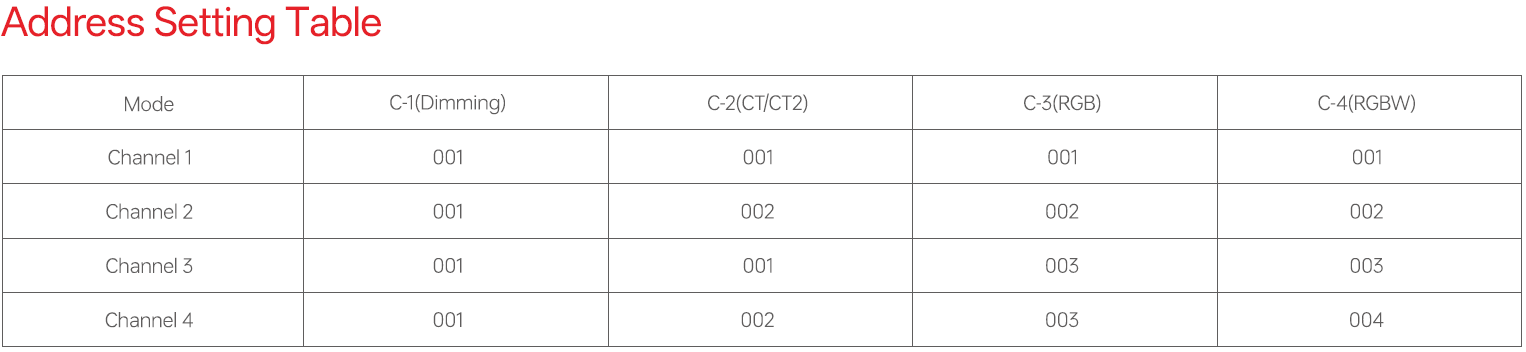

DIM/CT /RGB/RGBW mode optional (1/2/3/4 OMX channel output).

Provide 10 lighting effects, 8 speed levels of dynamic modes, and 255 brightness levels.

Set screen timeout , LCO screen always on, and screen turning off after 30s of inactivity.

Short circuit, over-temperature, over-current protection and auto recovery.

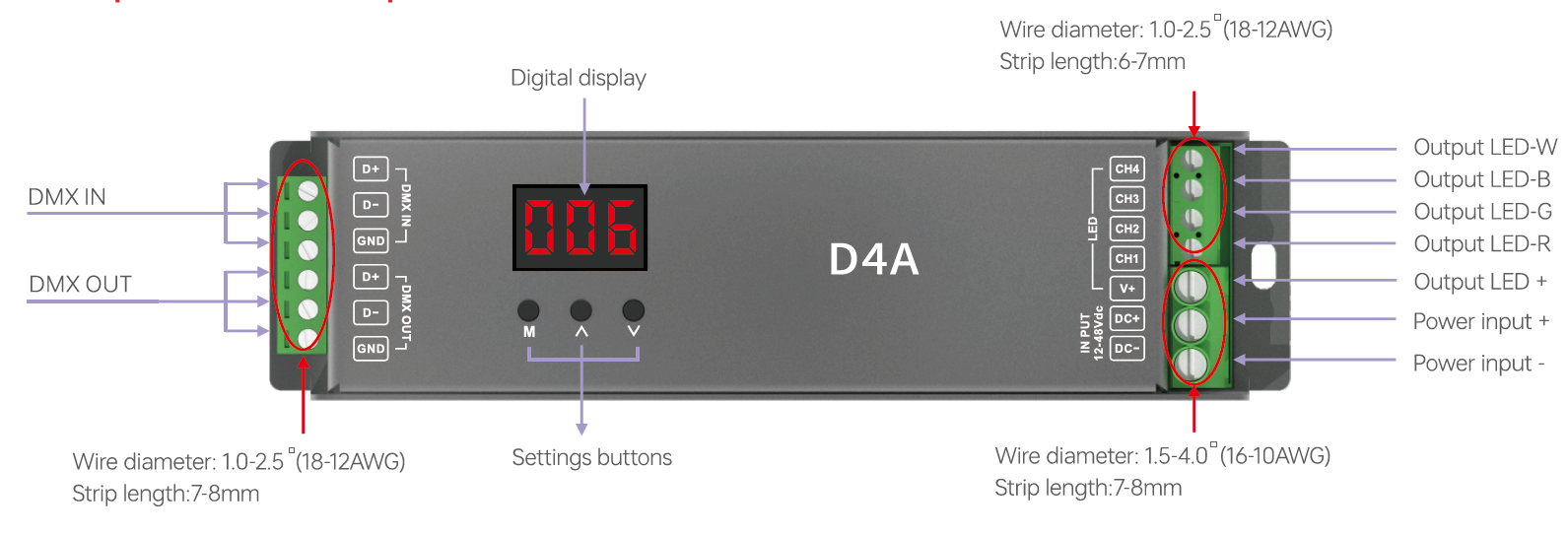

04A has green terminal OMX interfaces, 04B has RJ45 OMX interfaces.
