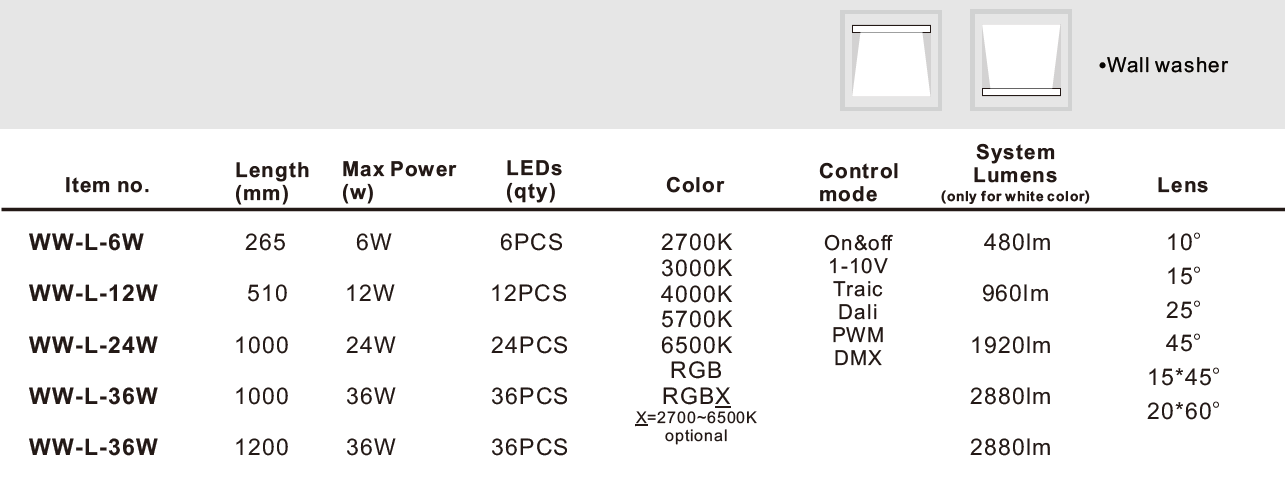

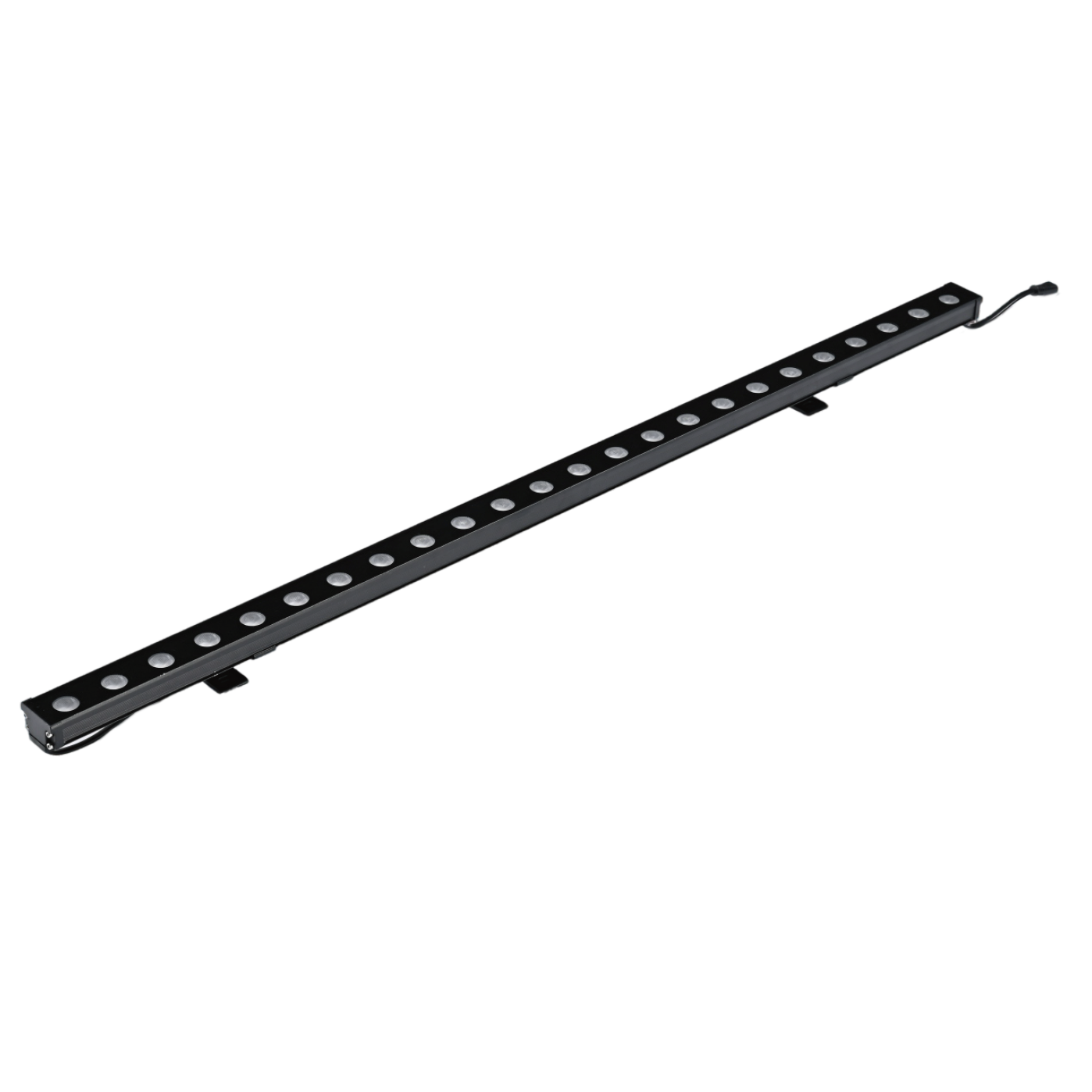

WW-L series 6W-36W Architectural Lighting Wall Washers in outdoor areas.With different sizes and A wide range of lumen classes,smaller buildings can be illuminated just as impressively as monumental facades.

Wall washers enable effective lighting in outdoor areas with different sizes and a wide range of lumen classes,smaller buildings can be illuminated just as impressively as monumental facades.

Aluminum housing,grey finish,IP66,24VDC
On/Off Switchable, phase dimmable ,DMX 512, Dali, PWM, 0-10V optional
Surfaced Wall mount /Surfaced mount /Wall washer

Product characteristics

•Aluminum housing+glass

•Housing color: Black/Silver/White/Grey optional

•Protection rating IP66

•Surfaced mounting

•Single-color or Multi-color mode optional

•Color Tolerance(only for white) : 5-SDCM

•External constant voltage power supply is needed

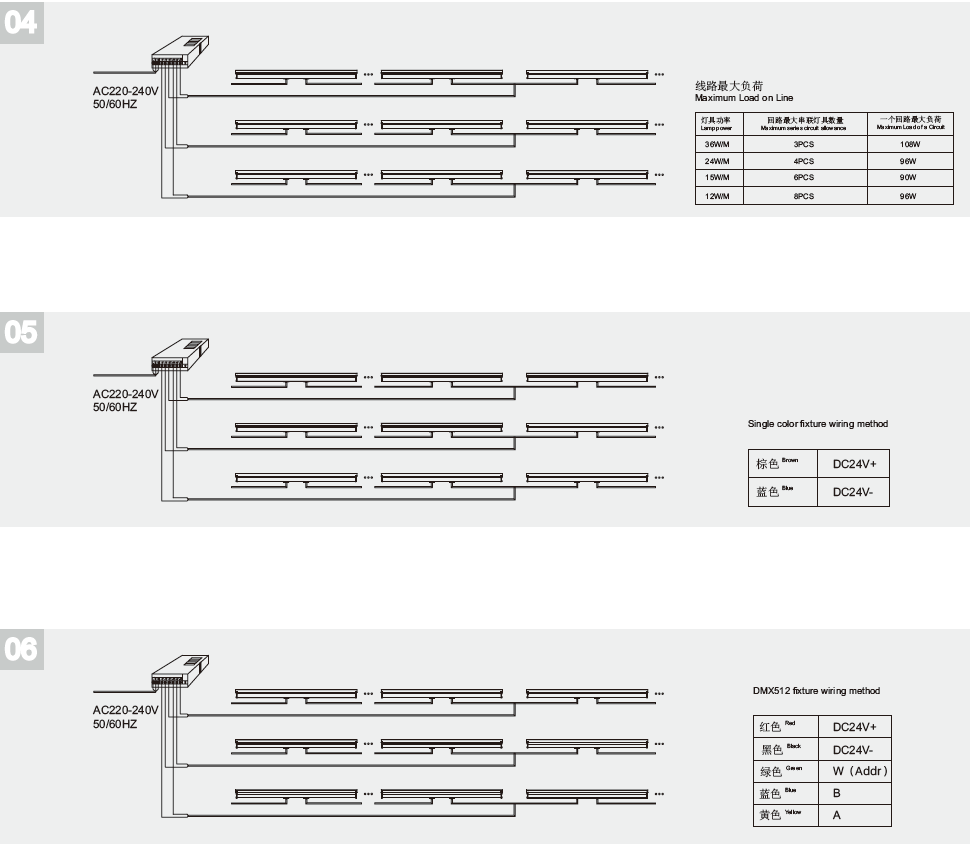

Control

•Under Single-color mode

Steady color: DC 24/48V optional

Dimmable: DMX/DALI/Traic/0-10V optional

•Under Multi-color mode

RGB or RGBX(x=W/WW/NW/Y/P etc)

DC 24/48V optional

Control signal: DMX/DALI/PWM optional

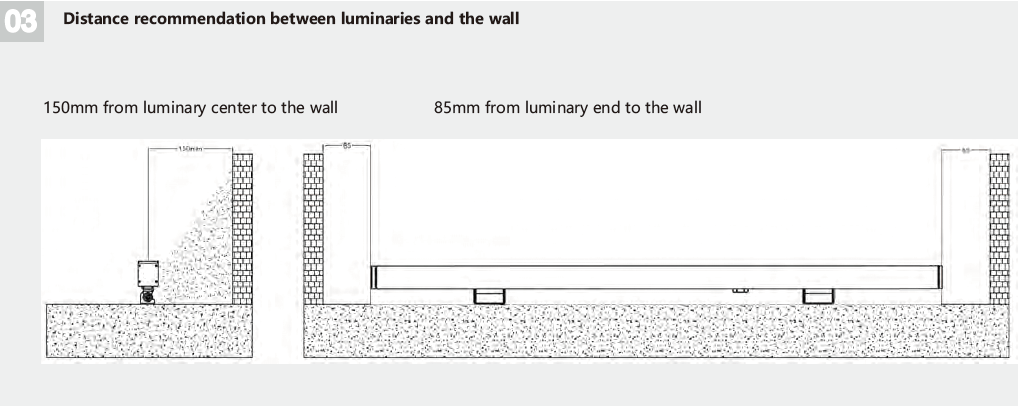

Installation

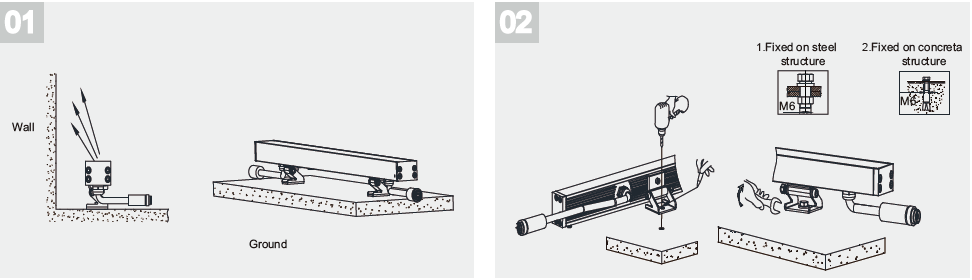

-Without visor lighting installaion

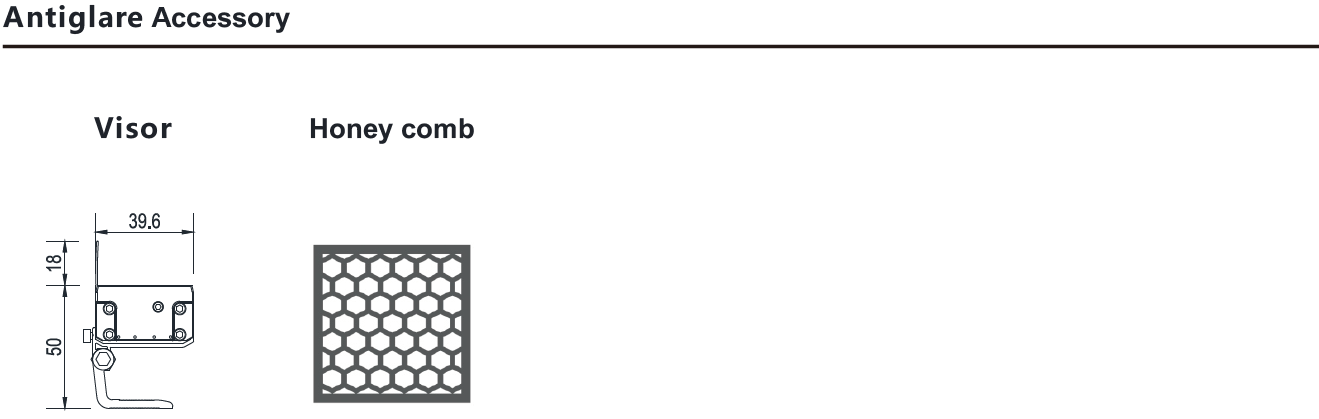

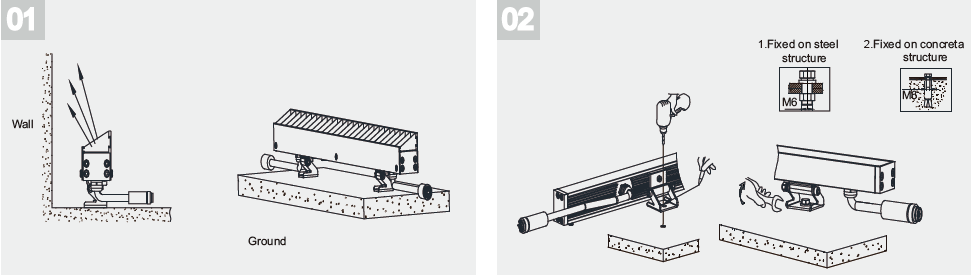

-With visor lighting installaion
