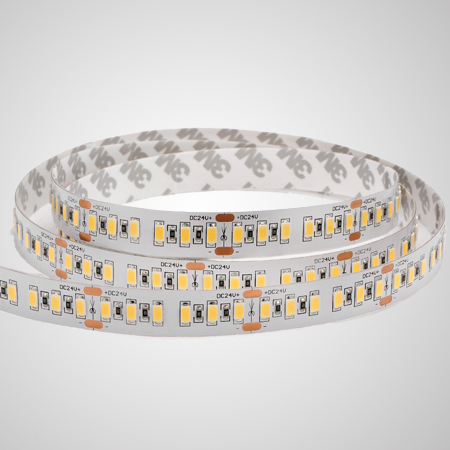

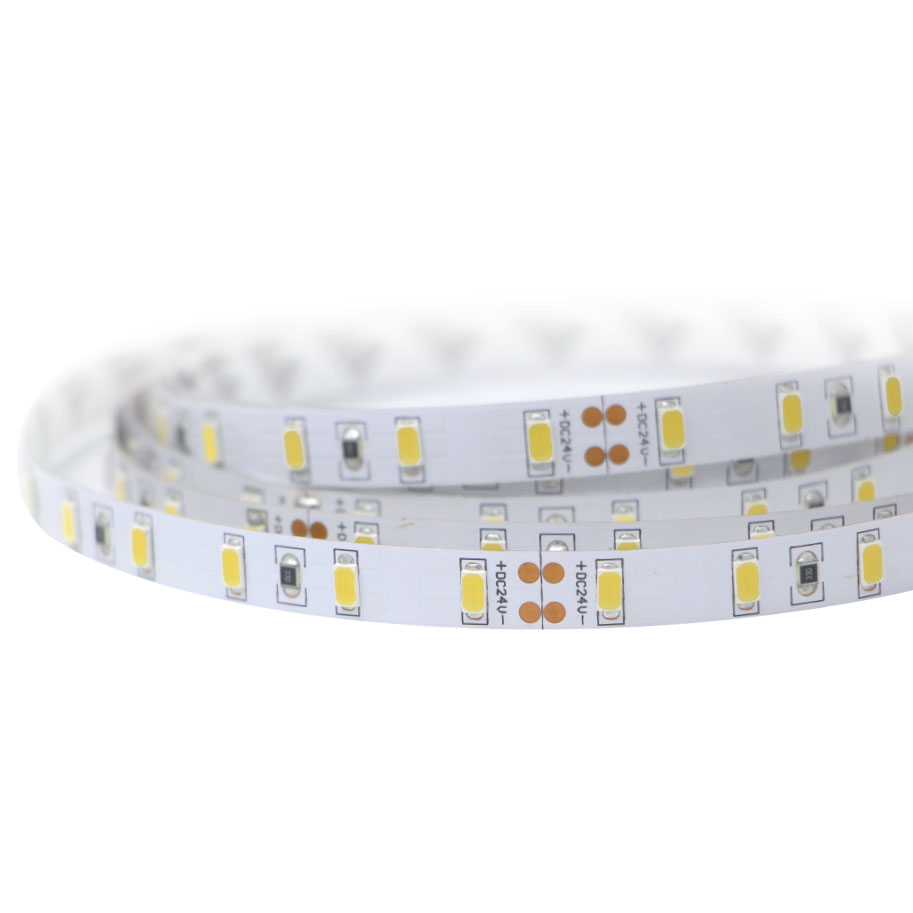

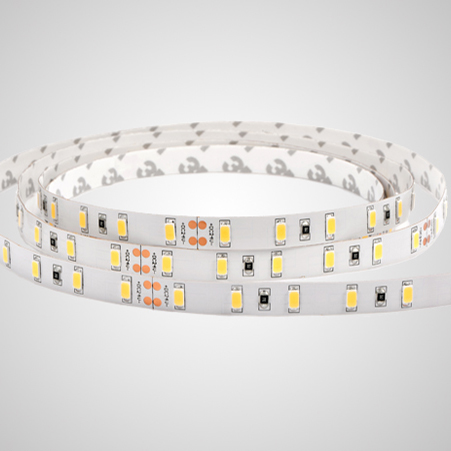

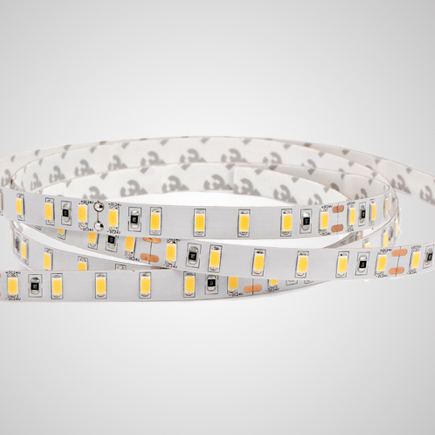

5730 LED Strip 19.2W/m, 22.5W/m, 38.4W/m

High brightness with high installation , outstanding thermal management, excellent light performance.

SMD5730 LED

LED Quantity: 60 leds/m, 72 leds/m, 120 leds/m

Protection:  IP62, IP65, IP67, IP68

Life span : 50, 000hrs

Warranty: Three Years

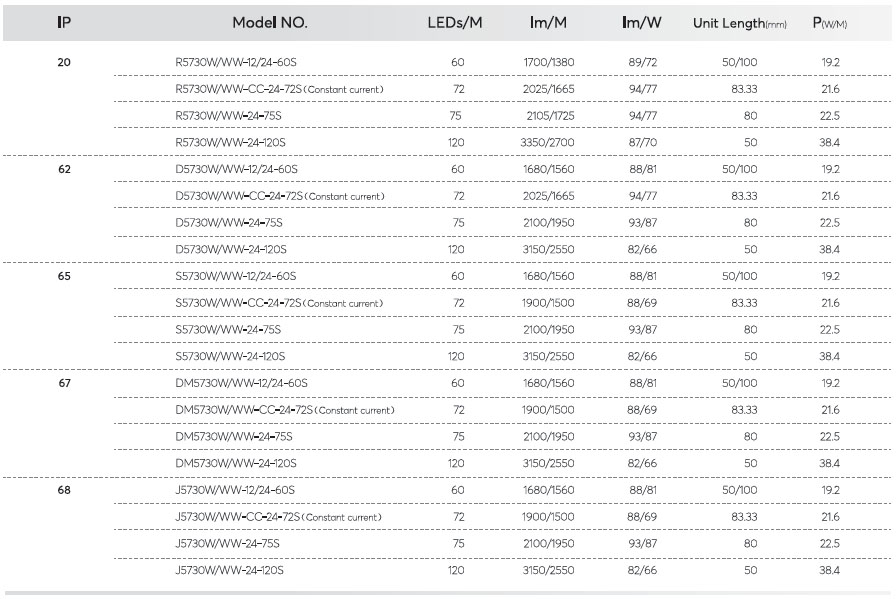

Specifications

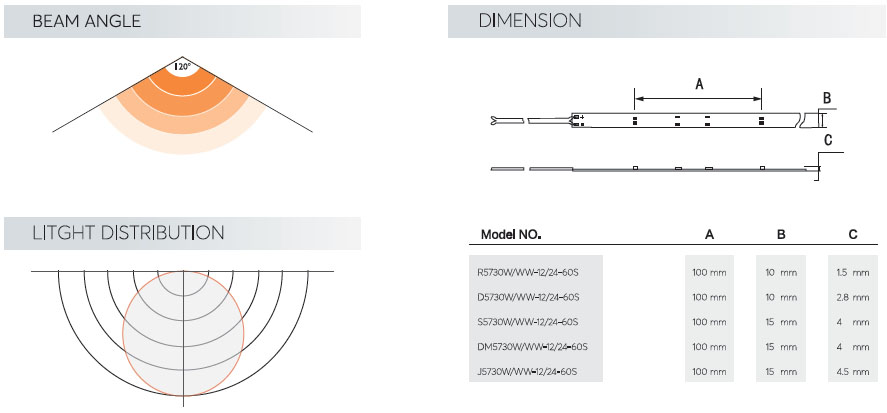

Beam Angle 120degrees Rated Power 19.2, 22.5, 38.4 Watts / m
Connection Type Pigtail Dimension 5000 mm * 10 mm
Dimmable Dimmable Housing Finish White
LED Brand Epstar LED Quantity 60, 72, 120 LEDs / m
LED Type 5730 SMD Standards And Certifications CE / ROHS / FCC
Special Features Constant Voltage Power Waterproof Grade IP20, IP62, IP65, IP67, IP68
Input Voltage 12-24 VDC Packing Dimension 37 (cm) x 25 (cm) x 25 (cm)
Packing 5m/roll , 25rolls/ctn, Packing Weight 6.5 kg

All specifications are subject to change without notice.

Emitting Color Intensity CCT/Wavelength CRI Luminous Efficiency
Pure White



Warm White



Nature White



Red




Green




Blue




Yellow




Purple




RGB




RGB+CW




RGB+WW




All specifications are subject to change without notice.
