LED Strip Light Indoor 14.4W 10mm-LED Strip

DESCRIPTION
SPECIFICATION
ACCESSORIES
APPLICATION

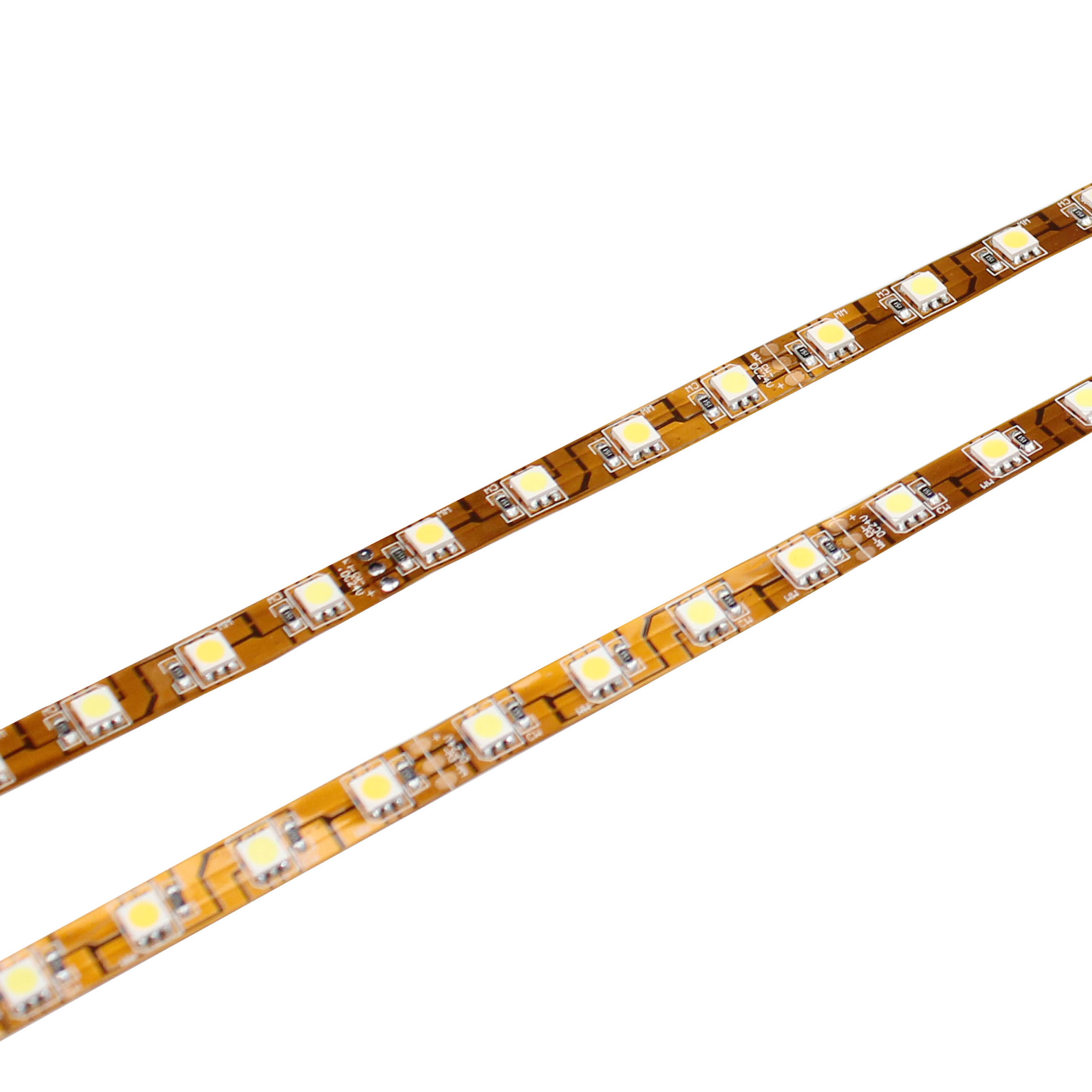

LED luminous strips, supplied in 5 mt. reels for indoor use and distinguished for their high luminous efficacy, the dimmable option, zero maintenance and zero UV emissions; available in warm white (2800K and 3000K) up to 72W version.

MATERIALS

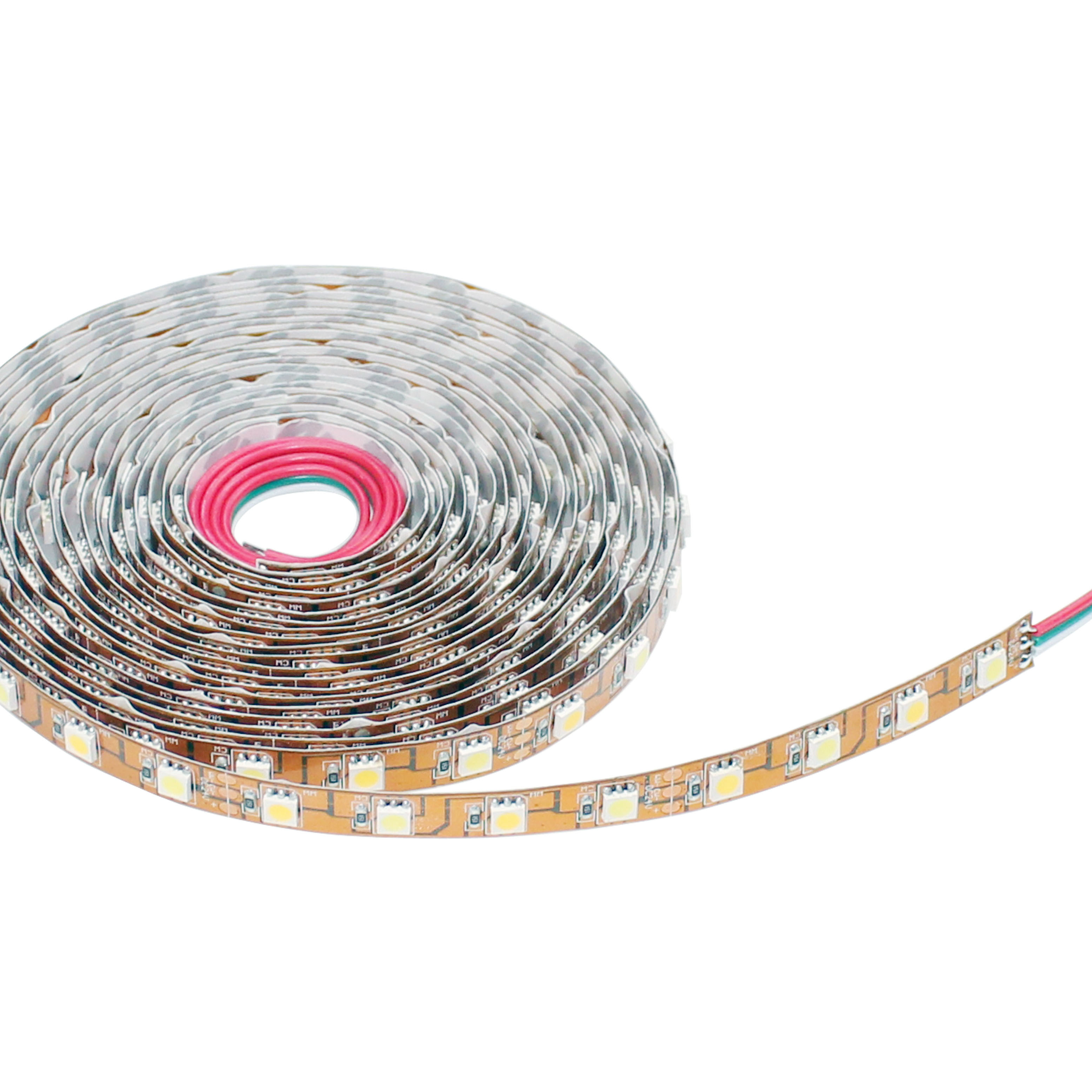

supplied in 5 meter reels with 60 LEDS/m (72W versions) and 120 LEDs/m (144W ), equipped with wires and connectors on both ends. Available in the RGB Version with 60LED/m (72W).

OPTIC
Front-emitting LEDs with a projection angle of 120° available with IP20 or IP68 protection.

MOUNTING
The strips can be installed using 3M® bioadhesive film or silicone fixing clips (supplied). For the visible installation, the rigid profiles are also available as accessories. The strip can be cut to length with a pair of scissors at intervals of 6 LEDs (restoring the waterproof properties with the caps supplied for IP68 versions). Each reel comes with an extra kit of male-female connectors for cutting the light profile in two segments. Maximum length for single feeding 5 meters. Also suitable for outdoor and permanent underwater installation.

POWER SUPPLY
To be fed with 230V/24VDC electronic transformer available as an accessory. Dimming is possible by means of the special Kit available as accessory.

VOLTAGE
24V-DC

NOTES
72W Versions – maximum 15 meters can be connected to the same power supply;
Two LED strips of 72W can be connected in parallel to the same power supply.

Specifications

Beam Angle	120degrees	Rated Power	18.37 Watts / m
Connection Type	Pigtail	Dimension	5000 mm * 10 mm
Dimmable	Dimmable	Housing Finish	White / Copper
LED Brand	Epstar	LED Quantity	60 LEDs / m
LED Type	5050 SMD	Standards And Certifications	CE / ROHS / FCC
Special Features	Constant Voltage Power	Waterproof Grade	IP33
Input Voltage	12-24 VDC	Packing Dimension	37 (cm) x 25 (cm) x 25 (cm)
Packing	5m/roll , 25rolls/ctn,	Packing Weight	6.5 kg

All specifications are subject to change without notice.

Emitting Color		Intensity	CCT/Wavelength	CRI	Luminous Efficiency
Pure White		1312.39lm	6000K	85	66.37lm / W
Warm White		1125.54lm /1164.02lm	2700K / 3000K	85	61.27lm / W
Nature White		1200.11lm	4000K	85	65.33lm / W
Red		-	-	-	-
Green		-	-	-	-
Blue		-	-	-	-
Yellow		-	-	-	-
Purple		-	-	-	-
RGB		-	-	-	-
RGB+CW	-	-	-	-	-
RGB+WW	-	-	-	-	-

All specifications are subject to change without notice.

S10-2CDH 10mm flexible light strips interconnect jumper, solder-less inserts and connects light strips. Adapter clamp on connectors pierce waterproof epoxy coating to make solid connection to strip's contacts.

S10-2CPTH 10mm Flexible Light Strip Solderless Clamp On Pigtail Adapter,10mm flexible light strips Solder-less clamp on pigtail adapter. Use for connecting Flexible Light Strips and Strip segments. Adapter clamp on connectors pierce waterproof epoxy coating to make solid connection to strip's contacts.

S10-2CH 2 Contact 10mm Flexible Light Strip Interconnect,10mm flexible light strips interconnect jumper, solder-less inserts and connects light strips. Adapter clamp on connectors pierce waterproof epoxy coating to make solid connection to strip's contacts.

S10-4CPTH Flexible Light Strip Pigtail Connector Clamp, RGB series pigtail connector clamp. 10mm wide and 15.24cm(6in) length. This non-waterproof connector requires additional steps to waterproof.

S14-5CPTH 5 Contact 14mm Flexible Light Strip Pigtail Connector for RGBW Strips, RGB series 5 channel pigtail connector for RGBW series light strips. 18mm wide and 20.35cm(8in) wire length.

S14-5CH 14mm flexible light strips interconnect jumper, solder-less inserts and connects RGBW series light strips. Adapter clamp on connectors make solid connection to strip's contacts.

CPS-EXT extension cable for CPS power supplies or BPS-12VDC-x battery power supplies with 5.5mm barrel connector. Available in 100cm(39.3in) or 300cm(118in) length and is for low voltage DC cables.

CPS-MxFSW-Plug and Play in-line switch for CPS series power supplies and products. ON/OFF switch with 1 female and 1 or 2 male 5.5mm barrel connectors. 5 amps max at 12VDC. 31.75cm(12.5in) wire length.

CPS-PT Pigtail CPS Power Adapter Cable, Pigtail wire leads power adapter cable for compact power supplies. Allows products with power wires to connect with 5.5mm barrel connector. 63.5cm(25in) length.

Waterproof Power Wires, includes one male and female connector with screw on cap. 5.5mm barrel plug. Connects to WLFA2-xW15SMD series strips. 17.78cm(7in) length.

Ideal LED Strip lighting applications for LED Ribbon Strip Lights include,
signage, interior/exterior lighting, back lighting, accent lighting,
under cabinet lighting, landscape lighting, bar lighting, club lighting,
architectural lighting and any other lighting projects.
