Specifications

All specifications are subject to change without notice.

Emitting Color		Intensity	CCT/Wavelength	CRI	Luminous Efficiency
Pure White		1	1	1	1
Warm White		1	1	1	1
Nature White		1	1	1	1
Red		1	1	1	1
Green		1	1	1	1
Blue		1	1	1	1
Yellow		1	1	1	1
Purple		1	1	1	1
RGB		1	1	1	1
RGB+CW		1	1	1	1
RGB+WW		1	1	1	1

All specifications are subject to change without notice.

MATERIALS

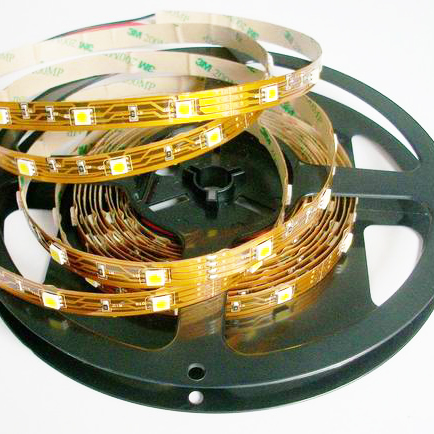

Flexible PVC profile, supplied in 5 meter reels with 120 LEDS/m (77W versions) and 60 LEDs/m (24W and 41W), equipped with wires and connectors on both ends. Available in the RGB Version with 60LED/m (50W).

OPTIC

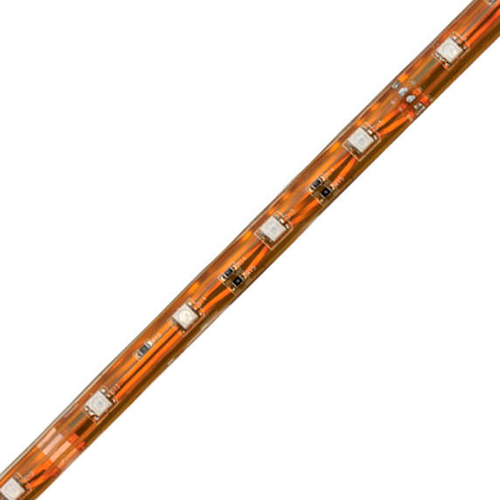

Front-emitting LEDs with a projection angle of 120° available with IP20 or IP68 protection. MOUNTING

The strips can be installed using 3M® bioadhesive film or silicone fixing clips (supplied). For the visible installation, the rigid profiles are also available as accessories. The strip can be cut to length with a pair of scissors at intervals of 6 LEDs (restoring the waterproof properties with the caps supplied for IP68 versions). Each reel comes with an extra kit of male-female connectors for cutting the light profile in two segments. Maximum length for single feeding 5 meters. Also suitable for outdoor and permanent underwater installation.

POWER SUPPLY

To be fed with 230V/24VDC electronic transformer available as an accessory. Dimming is possible by means of the special Kit available as accessory.

VOLTAGE

24V-DC

NOTES

24W Versions – maximum 15 meters can be connected to the same power supply; 41W Versions – maximum 10 meters can be connected to the same power supply; 77W Versions – maximum 5 meters can be connected to the same power supply. Two LED strips of 77W can be connected in parallel to the same power supply.

Ideal LED Strip lighting applications for LED Ribbon Strip Lights include,

signage, interior/exterior lighting, back lighting, accent lighting,

under cabinet lighting, landscape lighting, bar lighting, club lighting,

architectural lighting and any other lighting projects.
