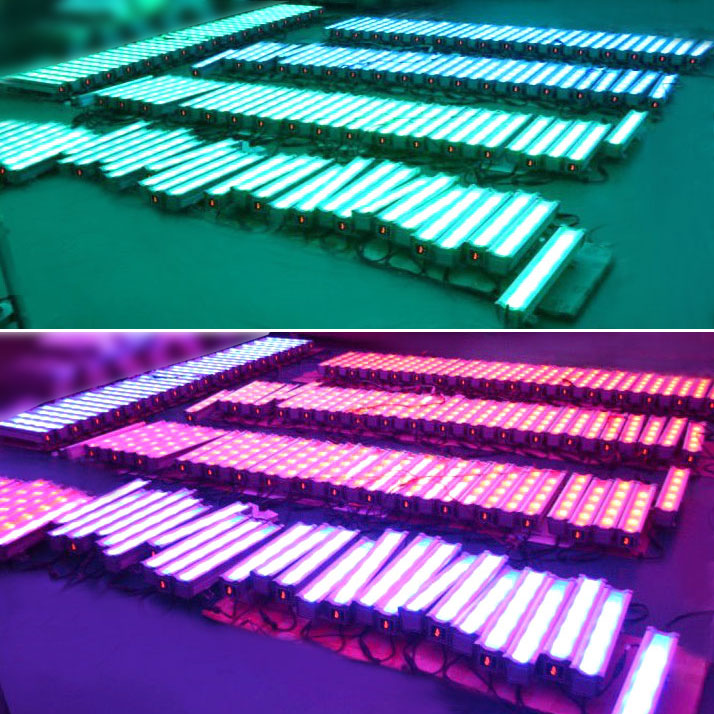

5*8W RGBW 300mm Pixel Control Linear LED wall washer





 Features:

-Working voltage AC100-240V 50/60HZ.

-Illumination: 5pcs high brightness 8W LED RGBW 4in1

-Unlimted RGB color mixing system

-Projection distance 5 - 10M

-DMX capability: Intergrated DMX sockets

-0-100% linear smooth dimming, speed adjustable, time adjustment.

-Materials: Linear Aluminum , PMMA diffuser lens

-Included accessories: Power card for built-in power supply, DMX female + male cable

-Application: Shopping malls, subways, restaurants & hotels, bars, KTV, clubs. etc.

-Warranty : Three Years.







Lamp Item No.: PR-V5-3



CONSTRUCTION

Material: Aluminum alloy housing, tempered glass, stainless steel screw.
Surface finish: powder coating aluminum silver grey, outdoor grade, anti-UV.
Effects: RGB color-changing, flowing, chasing,built-in programs, 256 grades brightness adjustment.
Display: 3-digit LED screen for autoprogram and color selection

Tilt rotary angle: 175degrees

Spare cable included:Mini waterproof XLR connector to standard 3-pin male and female XLR 0.5m long

LIGHT SOURCE
Number of light sources: 5 pcs ( 8 watt )

Input voltage: AC85-245V 50/60HZ (Single color) ( RGBW )

Power Products 40 Watt
Light source color: WW(Warm white)/CW(cold white)/Red/Green/Blue/RGB
Adapter included: Yes
Protection class IEC: I (Safety class I)
Ingress protection code: IP65
Beam angle: 8°/15°/25°/40°/60°



CONTROL

Control:DMX512 standalone , master/slaver,  auto run, DMX programmable
Channel: RGB 6-CH (R,G,B,Speeding,Dimming)  chs
Dimmer: 0- 100 % linear dimming

DMX signal connection: 3- pin

Certification: CE, Rohs, FCC, SAA compliant
Lifetime: 50000 hr
Operating Temperature: -20℃-50℃

Power factor: 0.98

Dimensions85.5mm(W)x111.2mm(H)x 300mm(L)
Weight: 2.5(KG)/ PC
Carton Packing:  4PCS/Carton / 260mm(W)x300mm(H)x350mm(L)
