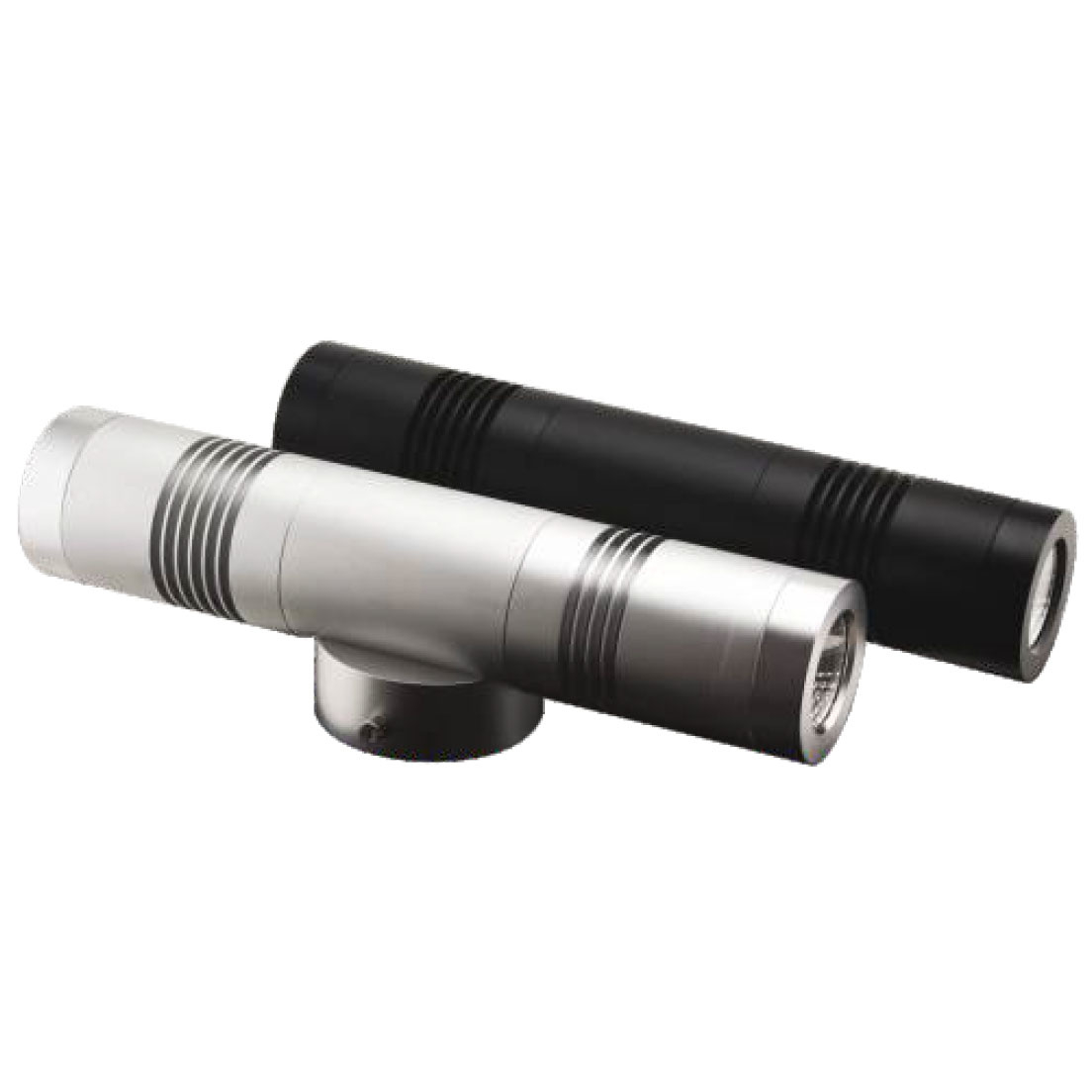

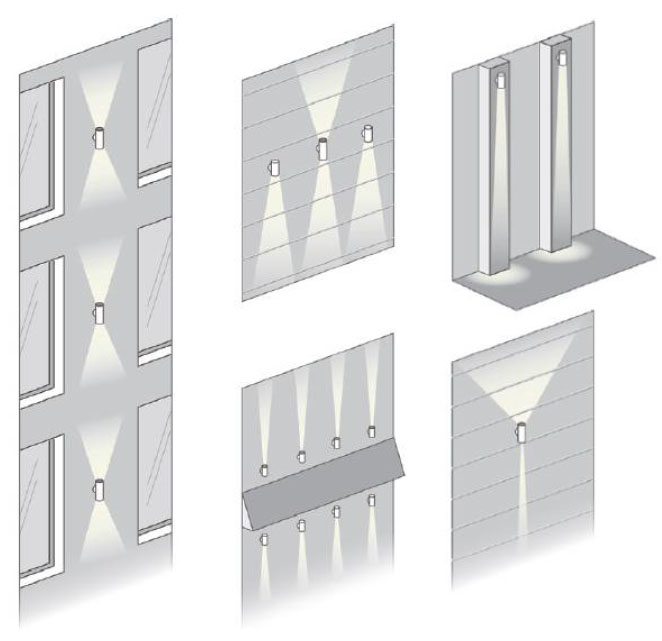

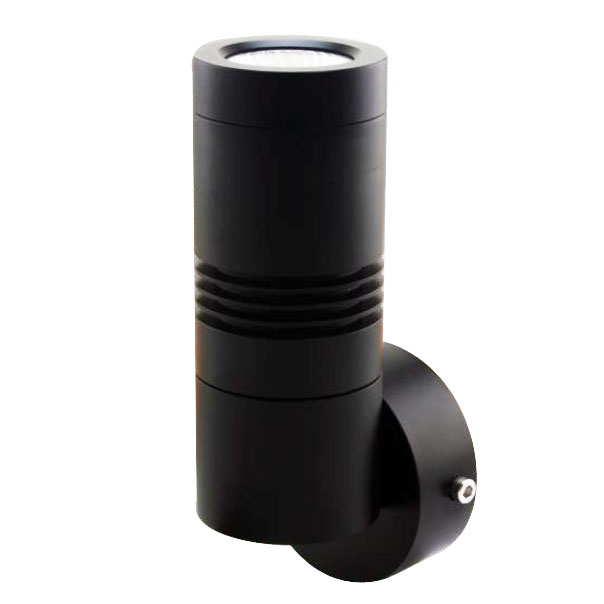

The IP65 Cylinder LED Wall is suitbale as building spotlight for architecture
- dimmable or DMX512, DALI, 1-10 V, controlable by RGB controler or power supplier .
- incl. Mounting Base .

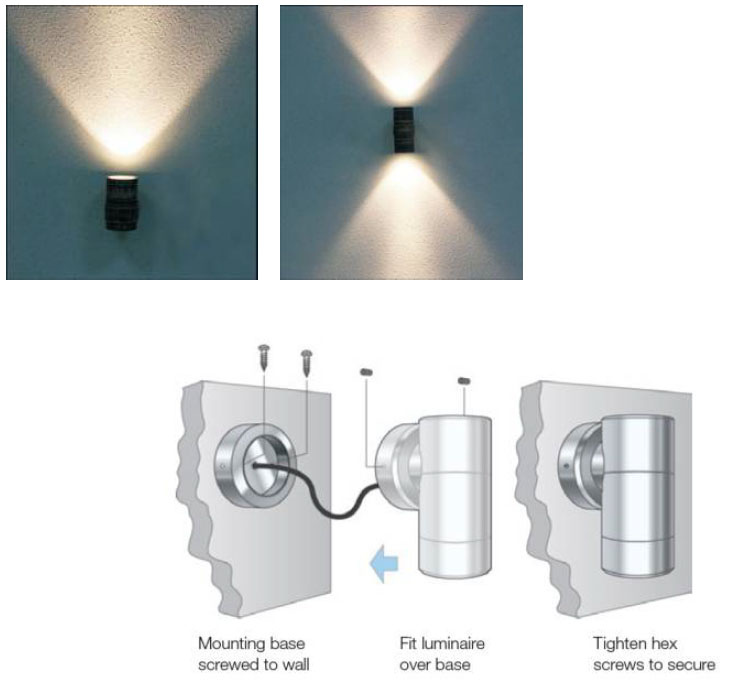

- easy installation system.
- COB or Epistar high power led available .
- 1 or 2 side light type available .
| Beam Angle |
Symmetric Epistar 3 / 10 / 15 / 30 / 45 / 60 degrees Symmetric Cree COB 24 / 36 / 60 degrees |
Rated Power | 15 Watts / m |
| Connection Type | Pigtail | Dimension |
|
| Dimmable | Dimmable | Housing Finish | Silver / Black |
| LED Brand | Epstar / CREE COB | LED Quantity | 1 COB |
| LED Type | COB | Standards And Certifications | CE / ROHS / FCC |
| Special Features | Constant Voltage Power | Waterproof Grade | IP65 |
| Input Voltage | 12 / 24 VDC | Packing Dimension |
|
| Packing |
|
Packing Weight |
|
All specifications are subject to change without notice.
| Emitting Color | Intensity | CCT/Wavelength | CRI | Luminous Efficiency | |
|---|---|---|---|---|---|
| Pure White |
|
1 | 1 | 1 | 1 |
| Warm White |
|
1 | 1 | 1 | 1 |
| Nature White |
|
1 | 1 | 1 | 1 |
| Red |
|
1 | 1 | 1 | 1 |
| Green |
|
1 | 1 | 1 | 1 |
| Blue |
|
1 | 1 | 1 | 1 |
| Yellow |
|
1 | 1 | 1 | 1 |
| Purple |
|
1 | 1 | 1 | 1 |
| RGB |
|
1 | 1 | 1 | 1 |
| RGB+CW |
|
1 | 1 | 1 | 1 |
| RGB+WW |
|
1 | 1 | 1 | 1 |
All specifications are subject to change without notice.
