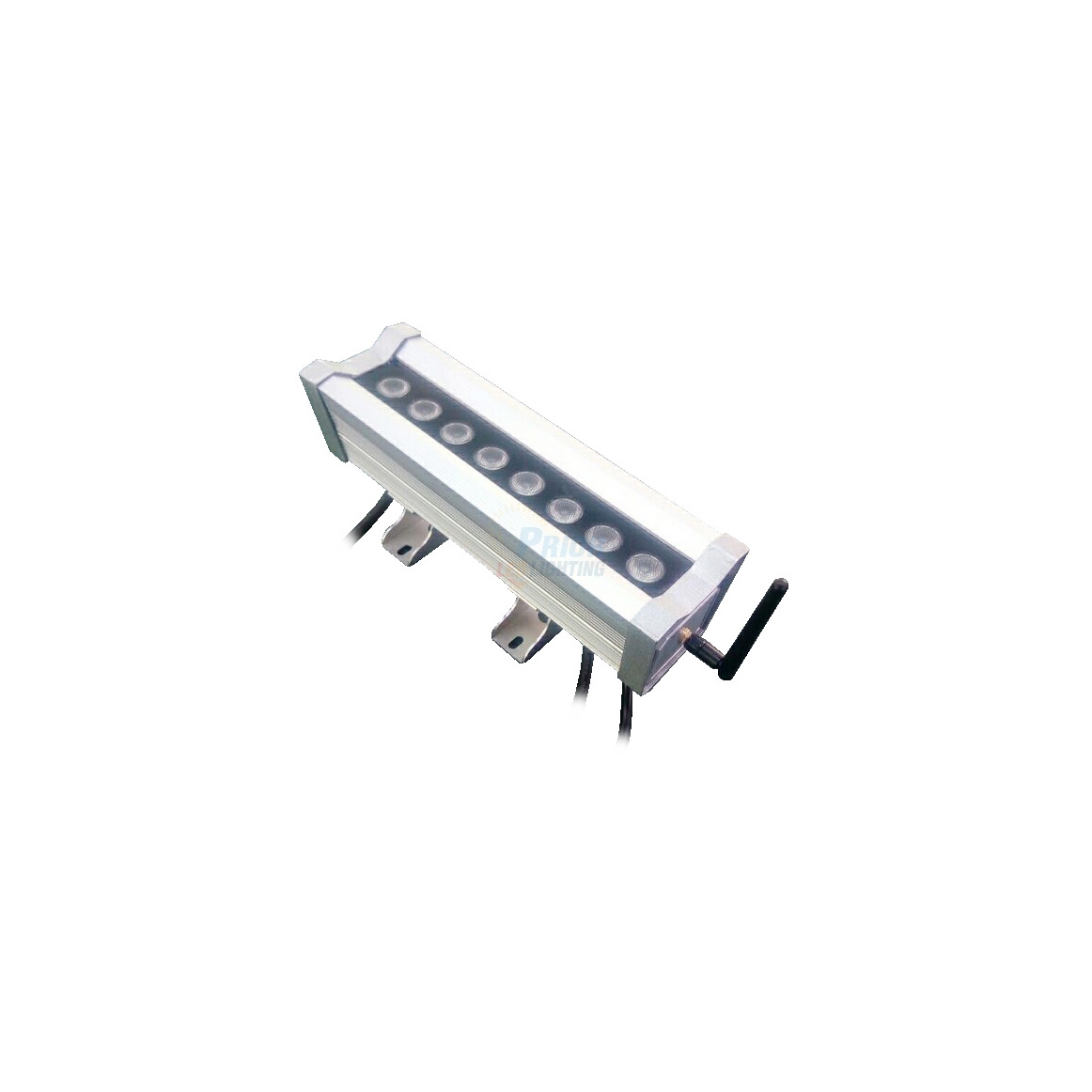

Mini Wireless RGB LED Wall Washer 24W

Mini Short Linear RGB+W+A LED Wall Washer AC100-240V 50/60Hz


High power Red , Green, Blue, White , Amber 5 Color in 1 LEDs as light source


It is a highpower landscape wall washer lighting for indoor and outdoor.


DMX512 built-in, Master/Slaver, DMX mode.


0-100% DMX dimmable, strobe, fade, speed changing, LCD screen display


Channels  7 CHS (RGBWASD)


Waterproof IP65


Input voltage: 100-120VAC / 200-240VAC 50/60Hz


Power Connection: AC power plug (4 feet in length)

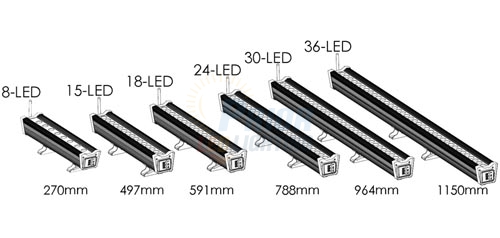

LED Quantity: 8pcs (300mm), 15pcs (500mm), 18pcs(800mm), 24pcs(900mm), 30pcs(1000mm), 36pcs(1200mm)


LED chip brand: Edison


CRI: 70 / 80


Beam Angle: Round 15° / 30° /45° /60° /80° / 120° / Rectangular 10° x 65° / Oval 25° x 60°

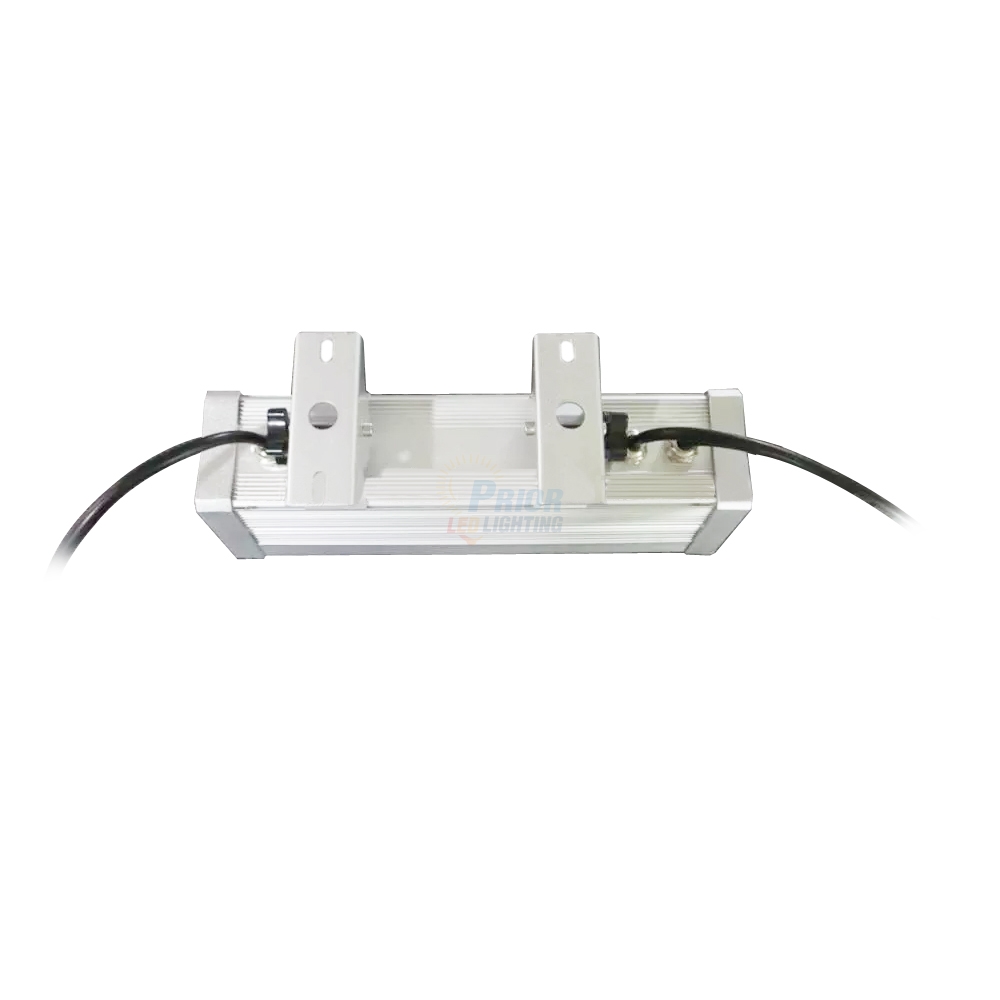

Mounting: 2 pcs removable rotary surface mount brackets, each bracket has 2pcs 6mm mounting holes.

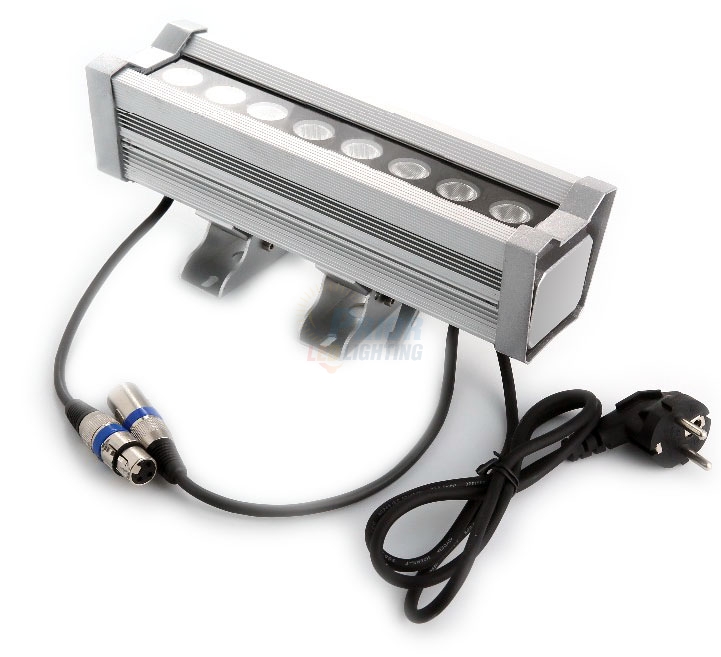

Connectors:  3-pin XLR female male with cable in 300mm length


Dimmable: dimmed or controlled by on-board control display, a compatible DMX control or DMX App on Smart-phone.


Ambient Temperature: - 20 - 50 ° C


Operation Temperature:  - 20 - 55 ° C


You can operate the Color-Changing RGB model of this LED wall washer in three ways(Single color unit can be dimmable 0-255% on -board):

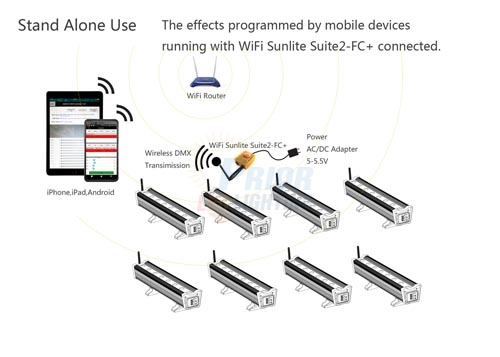

-Internal (stand-alone) mode: no other equipment is required to set the wall washer internally to generate   spectacular color-changing effects, including seven colors flashing, fading, jumping, static colors select on board.

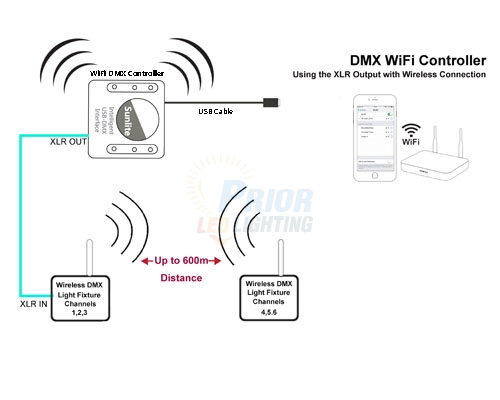

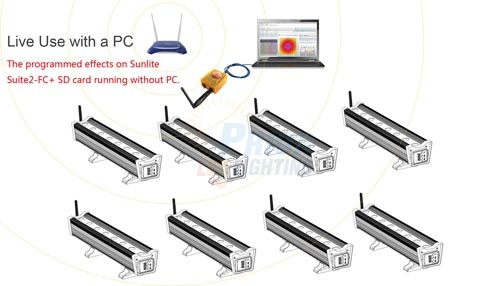

-DMX mode: an external DMX controller or software is required with thousands of possible effects and colors.
-Daisy chain: several washers can be linked together to synchronize in either DMX or Stand-Alone mode.
-The model of this plug-and-play LED wall washer simply plugs into a wall outlet, and can be dimmed with the on-board control and also daisy-chained to display in sync. The hard-wired DMX cables of this fixture allow you to daisy-chain several of them together and create a massive, dynamic LED lighting display.



Items #

LED
Quantity

Power
Per LED

Lamp
Power

Voltage

Color

Lumen s

(pc)

(W)

(W)

(V)

R

G

B

W

A

LUG-U5x3-RGB

5

3

15

AC100-240V

RGB

200

350

125

LUG-U5x6-RGB

5

6

30

AC100-240V

RGB

300

450

175

LUG-U5x5-RGBW

5

5

25

AC100-240V

RGBW

200

350

125

500

LUG-U5x8-RGBW

5

8

40

AC100-240V

RGBW

300

450

175

750

LUG-U5x6-RGBWA

5

6

30

AC100-240V

RGBWA

200

350

125

500

250

LUG-U5x10-RGBWA

5

10

50

AC100-240V

RGBWA

300

450

175

750

350




Dimensions:


Connection Methods:
