DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by console )by wireless way, which solves lighting control issues of wireless transmitting completely between console and lighting, lighting and lighting and so on, It get rid of connecting cable limited completely. And also can ensure without any time delay when signal data is transmitting, signal data is real time and reliably. This product adopt 2.4G ISM frequency section( global opening section) without permission limited high effective GFSK modulate,communication design; 512 channels jumping frenquecy automaticly, high anti-jamming ability.

DESCRIPTION
SPECIFICATION
ACCESSORIES
APPLICATION

Wireless DMX512 Receiver/Transmitter

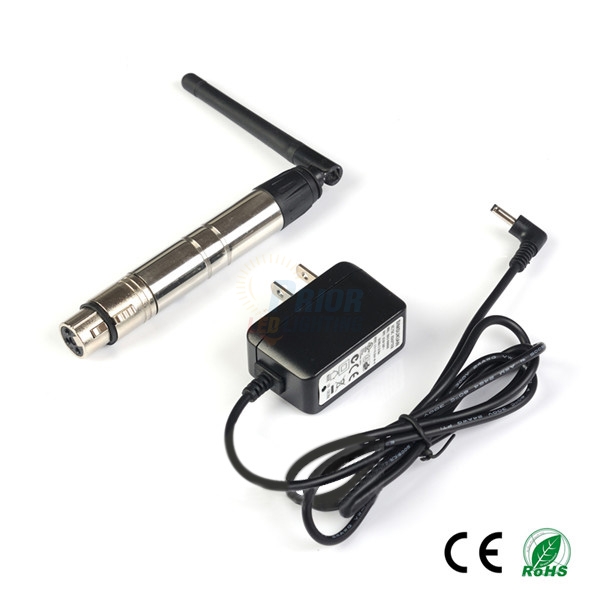

Model: LUG-XRL-WI-DMX

DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by console )by wireless way, which solves lighting control issues of wireless transmitting completely between console and lighting, lighting and lighting and so on, It get rid of connecting cable limited completely. And also can ensure without any time delay when signal data is transmitting, signal data is real time and reliably. This product adopt 2.4G ISM frequency section( global opening section) without permission limited higheffective GFSK modulate,communication design; 512 channels jumping frenquecy automaticly, high anti-jamming ability.

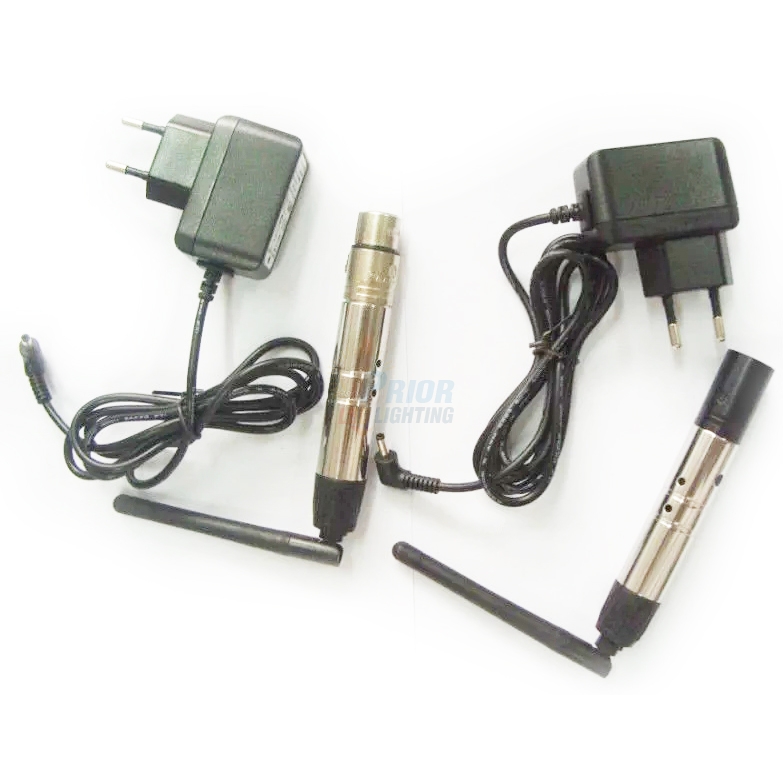

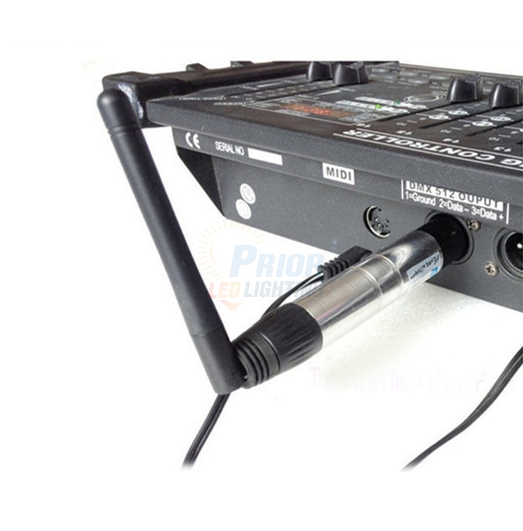

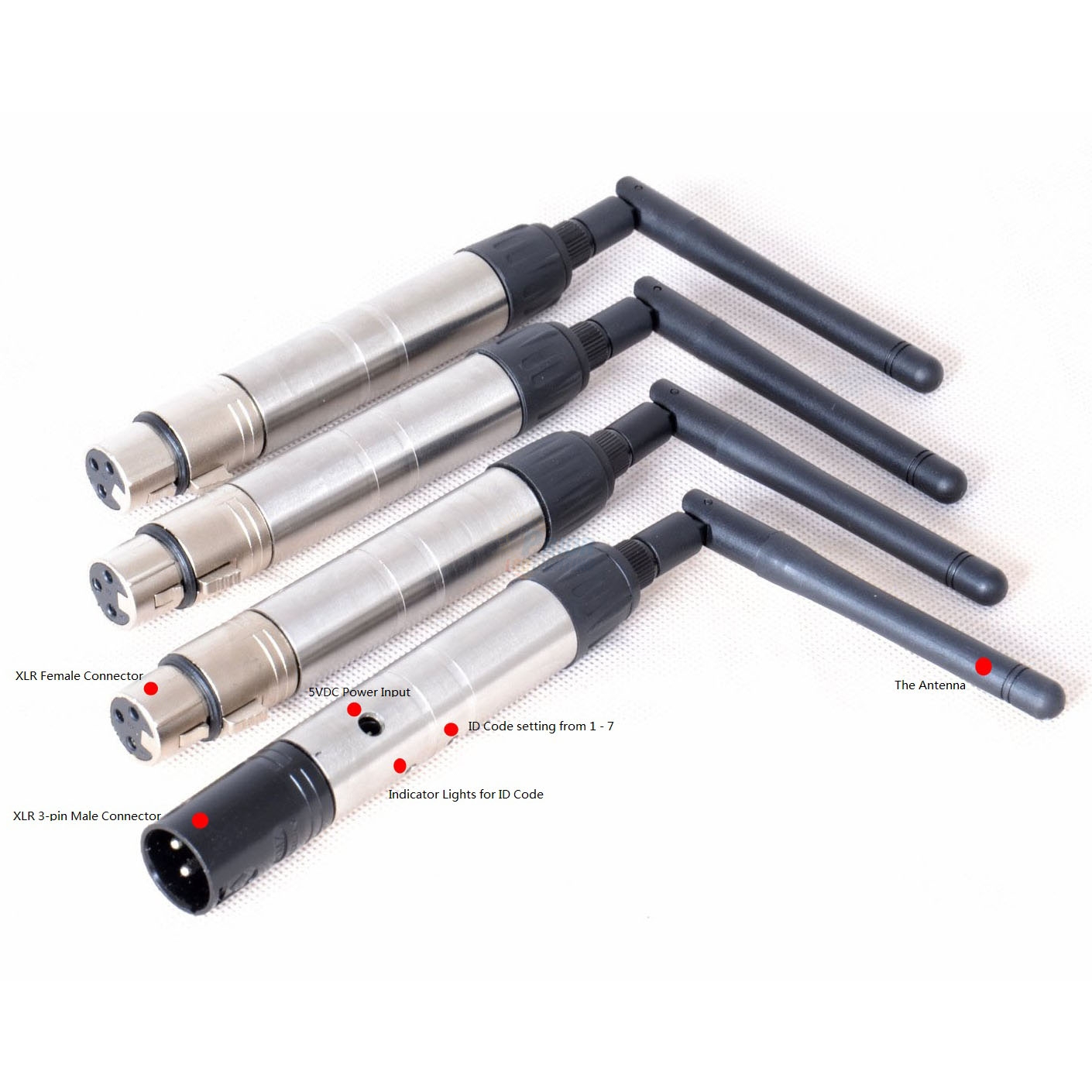

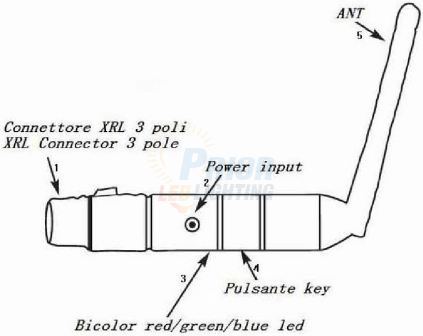

1：XLR plug 2：Input voltage 3：ID indicator 4：ID button 5：RF antenna

Operating manual：

1. ID code and LED color corresponding relateship：
1：RED
2：GREEN
3：RED+GREED
4：BLUE
5：RED+BLUE
6：GREEN+BLUE
7：RED+GREED+BLUE

2. Press key 1 time to indicate ID setting,，Press again to set ID, then ID value adding 1 each time.

3. Working condition：
LED constant lit up: no DMX or wireless singal
Red LED flash: transmitting.
Green LED flash: receiving

5. ID Code- - - -“1-7” groups ID code, press ”KEY” for setting, it only can works under same ID code. of transmitter and receiver.

Establishing Communication：
1. Power on DMX512 wireless received board and transmitted board.
2. Press “Key” button to set same ID value of transmitted board and received board., please use different ID value if you need use more than 1 group wireless net at same time in same place.
3. The red LED flashs when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.
4. Communication was established correctly then.

Application:

Stage lighting, Disco hall, Large literature performance, Gymnasium lighting, Temporary stage performance, Citylighting system, TV station, Conference center, professional showplace, Topic park, Bar lighting …
