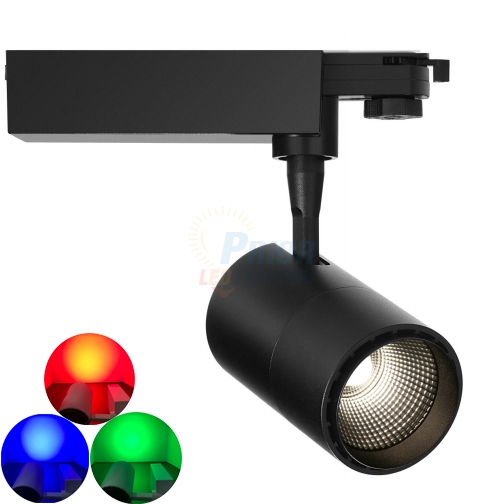

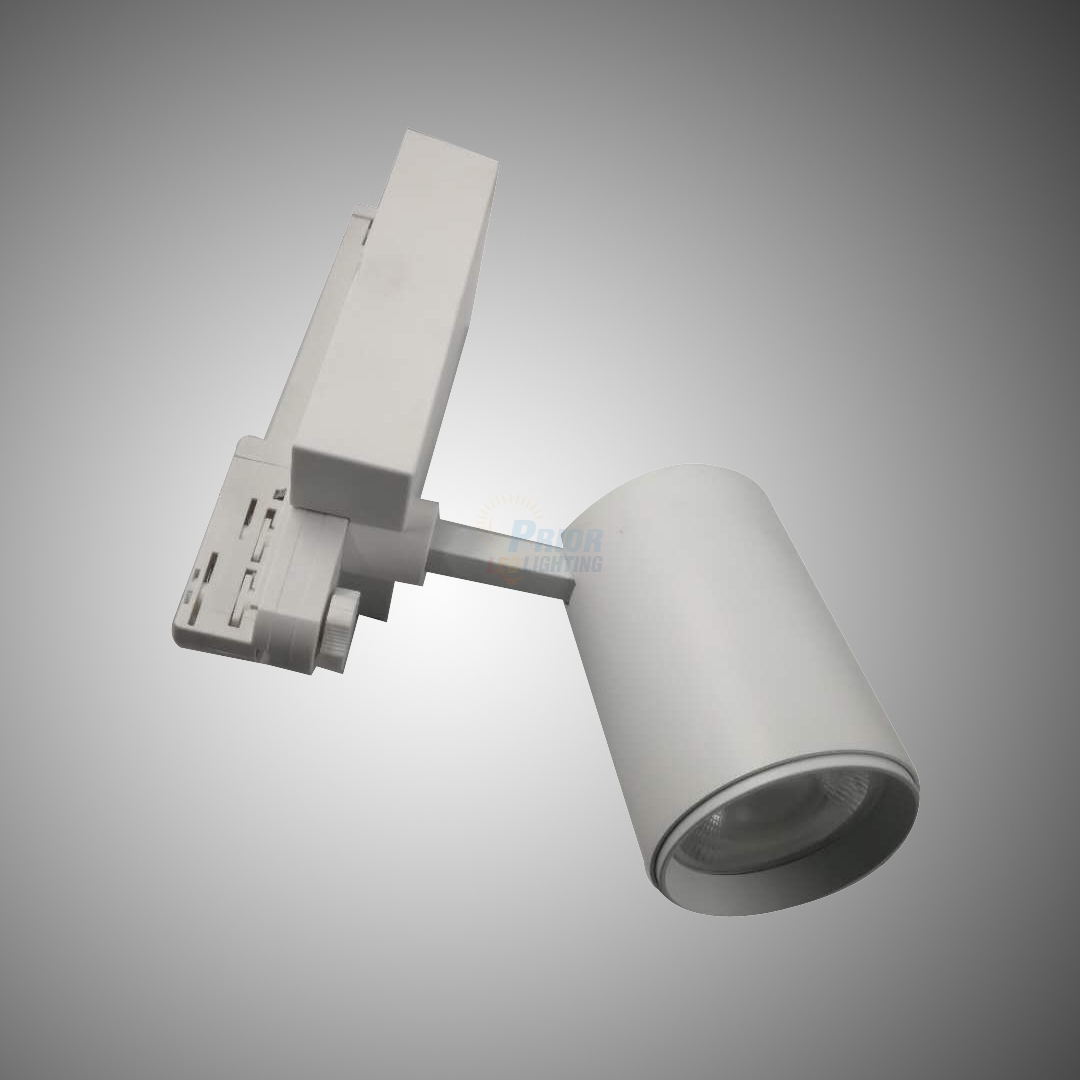

As the name suggests, track lights are mounted on rail device containing electrical conductors. Beautiful looking dimmable and color changing track lights are

perfect for both indoor and outdoor remoted use. The rail can be mounted on walls or ceilings, in both vertical or horizontal positions or even in crosswise. For high

ceilings, these LED track lights can be hung with the help of rods which results in better illumination on target areas. To assist the control of dimming and color

alternation, wireless panel is provided, and the RGB remote is used. Aesthetically appealing low power and very high efficiency LED lamps give you the best illumination

with perfect light structures, absorbing Correlated Color Temperature and great Color Rendering Index. The direction and angle of each light on the track can be

adjusted to give you the illumination where it is required the most. The low power LED chips will significantly cut your costs on the electricity bills.

 FEATURES

• Color and brightness are controlled through DMX or Dali Controller system

• Adjustable and lockable beam angle

• IP44 rated

• Includes a detachable shroud

• Mounting stake, 6' lead wire and direct burial gel filled wire nuts included

• Maintains constant lumen output against voltage drop

• Use with external dimmers and controllers

SPECIFICATIOINS

Input: AC100-277V / 200-240V

Power: 30W

Brightness: Red 368lm  Green 605lm Blue 115lm RGB 936lm

Beam Angle: 15 - 60 degrees

CRI:  80 - 85

Rated Life: 45, 000 hours

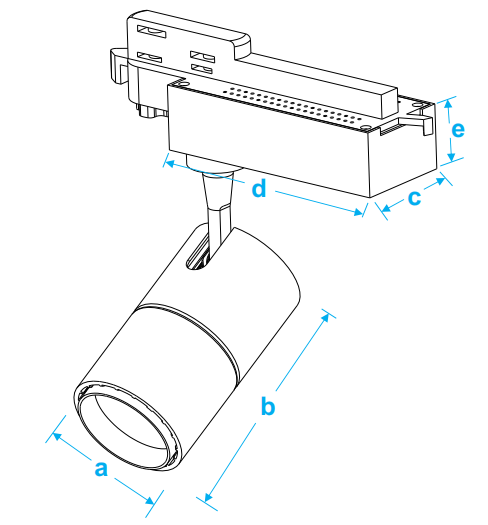

DRAWING

a=¢94mm , b=148mm, c=62mm, d=150mm, e=40mm

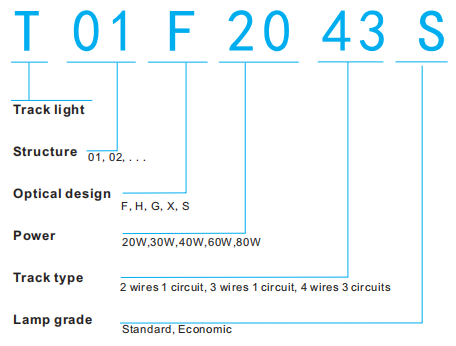

ORDERING NUMBER

Color Temp CC - Color Changing

Finish - W White , B Black

How to Install Track Lighting?

Installing both industrial or decorative track lighting is not as complex as it might seem. One can easily install these lights by his/her own self.

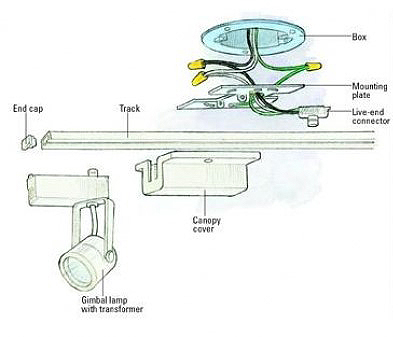

As shown in the diagram below, a track light comprises of a box which is covered on the hole from where, electrical wirings are available. A mounting plate is first installed on the box and wire connectors are installed. As per measurements, markings are made and the track is then mounted on the mounting plate. The lighting fixture is then installed and live wire is then connected to the light wires. Your wireless ceiling color-changing track lighting is installed and ready to be used.
