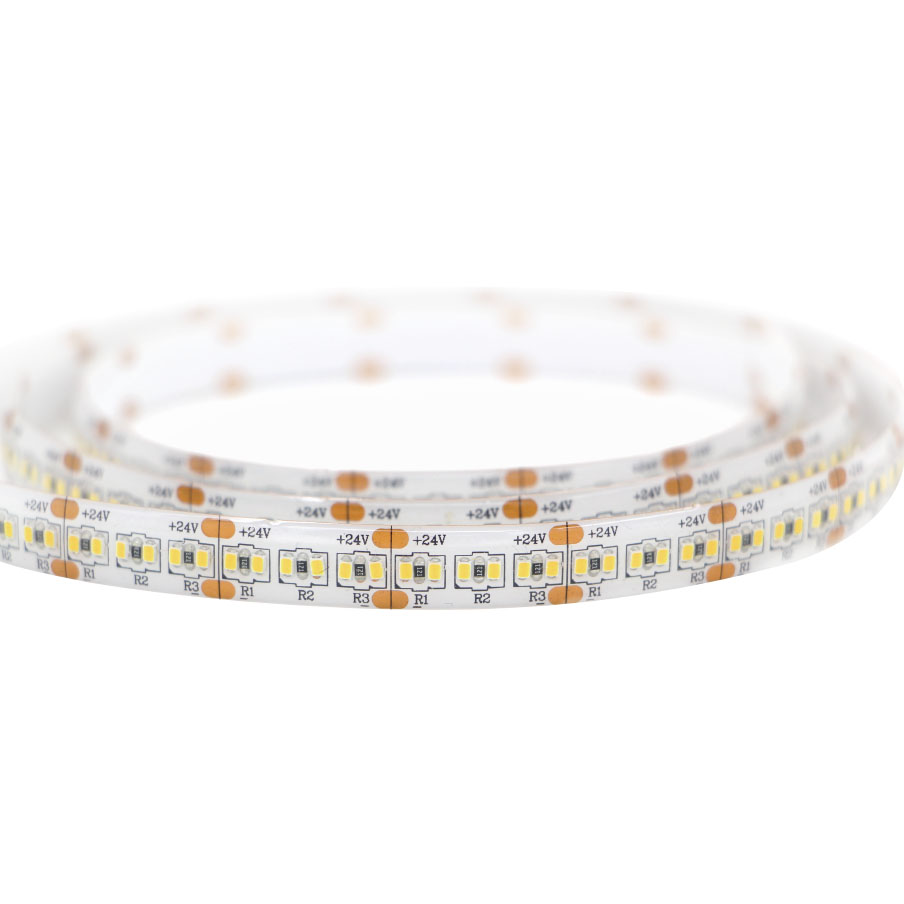

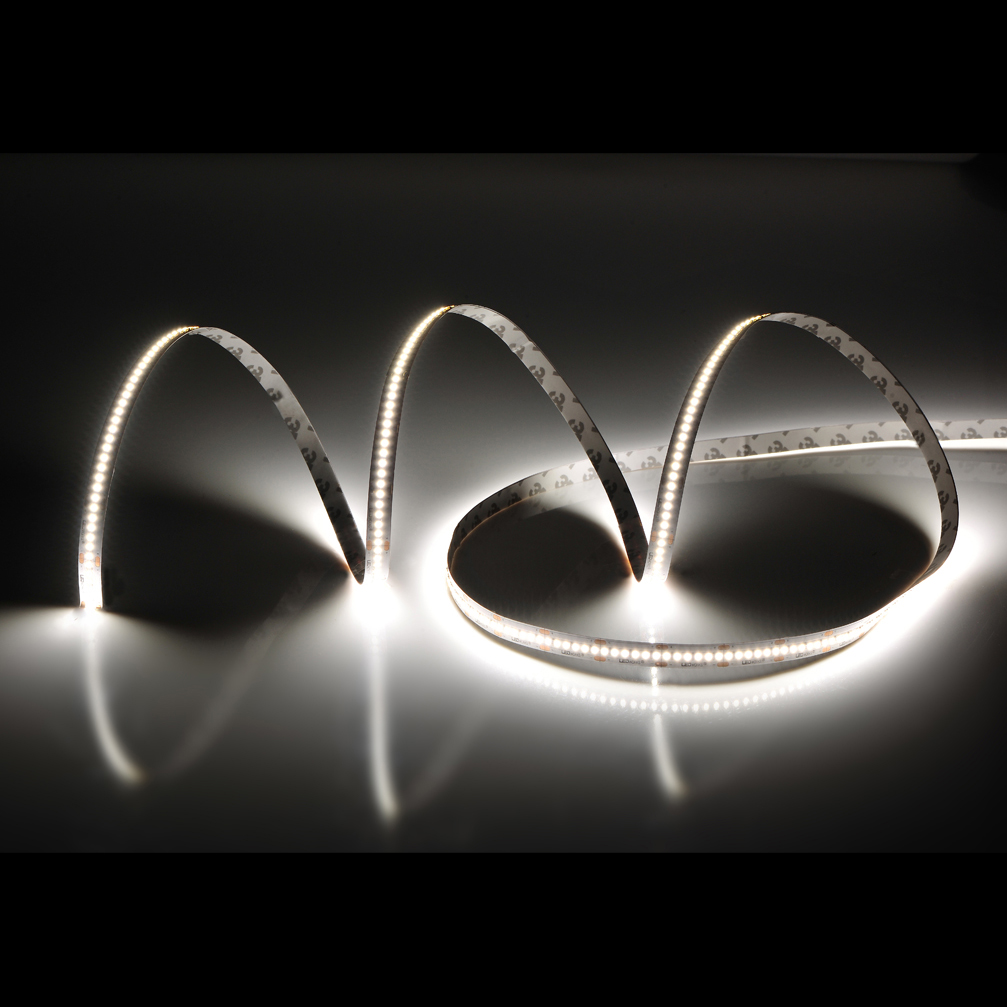

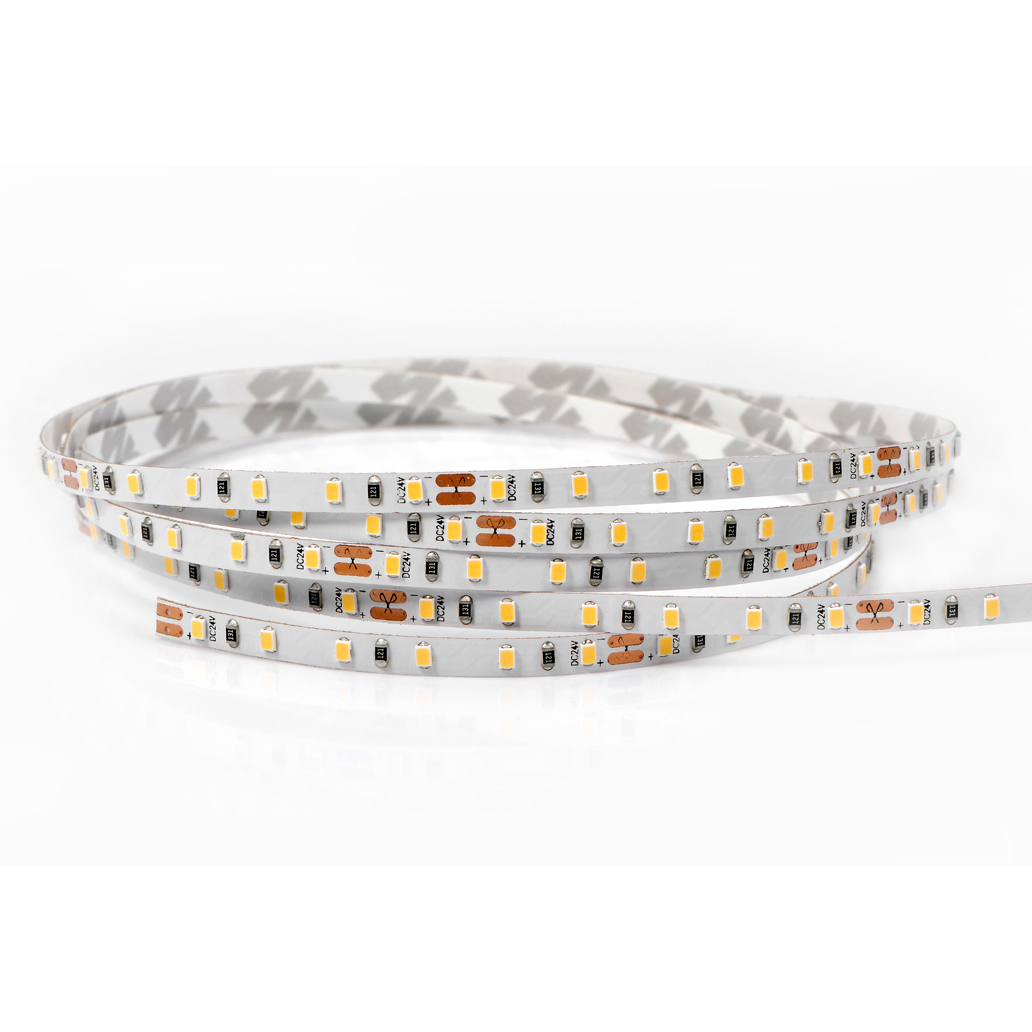

2216 LED Flexible Strip 15Watts/m




SMD2216 small size chip 2.2 mm x 1.6 mm,  super high illumination

15 watts / m , 24VDC , Waterproof IP62 ,  IP65, IP67, IP68 available

Front :

Lateral:




Specifications

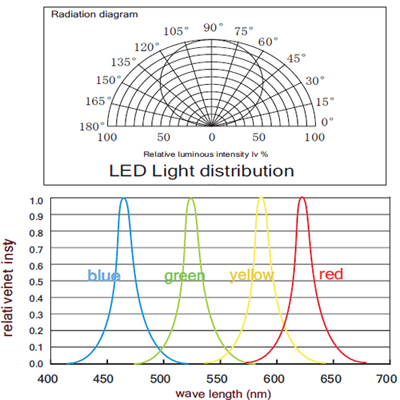

Beam Angle 120degrees Rated Power 15 Watts / m

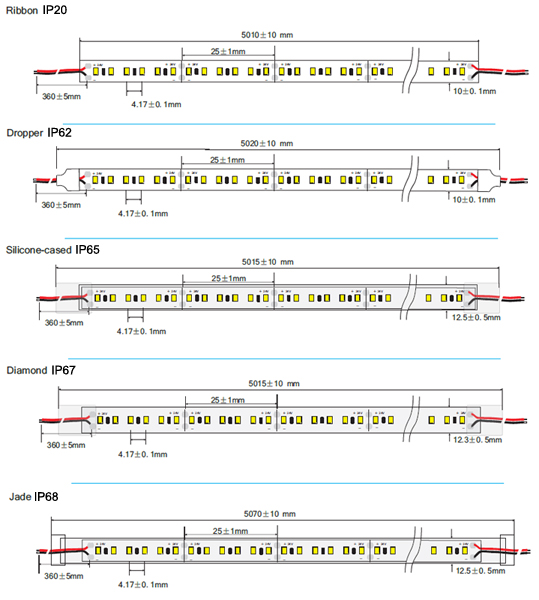

Connection Type Pigtail Dimension 5000 mm * 10 mm
Dimmable Dimmable Housing Finish White
LED Brand Epstar LED Quantity 240 LEDs / m
LED Type 2216 SMD Standards And Certifications CE / ROHS / FCC

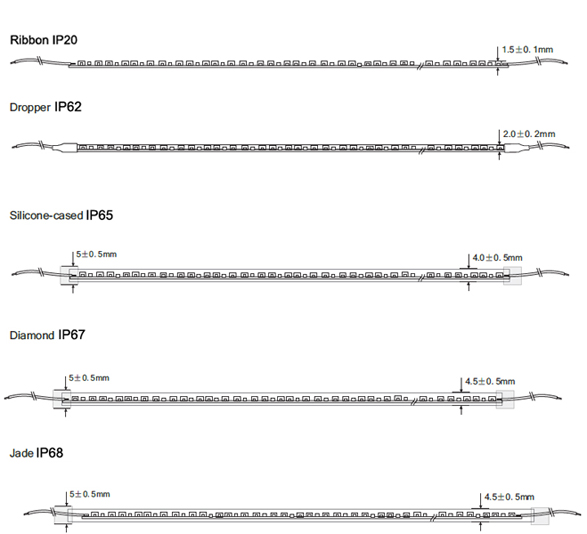

Special Features Constant Voltage Power Waterproof Grade IP20, IP62, IP65, IP67, IP68
Input Voltage 12-24 VDC Packing Dimension 37 (cm) x 25 (cm) x 25 (cm)

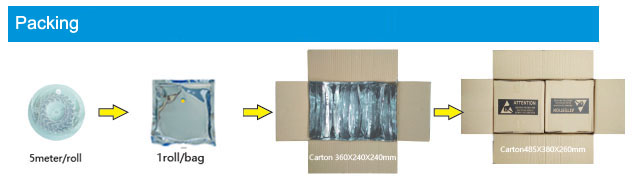

Packing 5m/roll , 25rolls/ctn, Packing Weight 7.0 kg

All specifications are subject to change without notice.

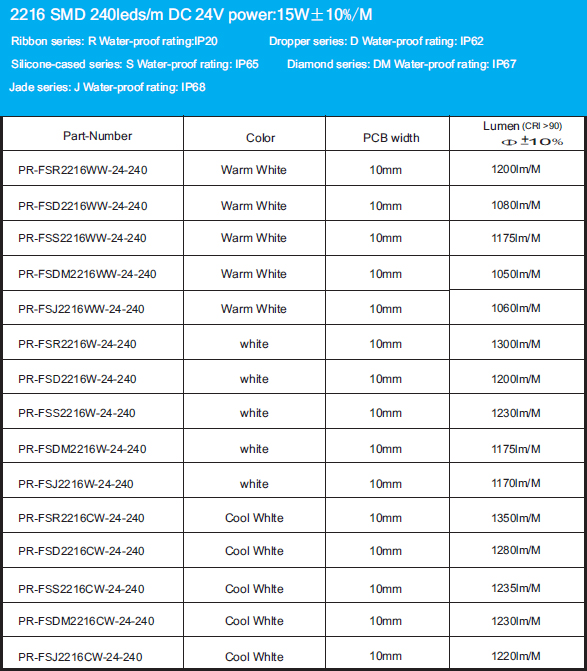

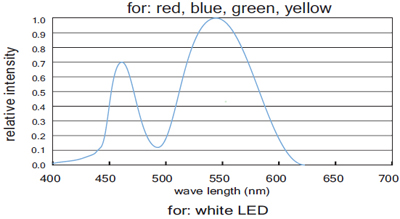

Emitting Color Intensity CCT/Wavelength CRI Luminous Efficiency
Pure White 1350 lm/ watt
5700-6200K 90
Warm White 1200 lm/ watt
2700-3200k 90
Nature White 1300 lm/ watt
4000-4500K 90
Red




Green




Blue




Yellow




Purple




RGB




RGB+CW




RGB+WW




All specifications are subject to change without notice.
